The SLAS8-module board S30122-Q921-C301 is a subscriber-replacement-board with eight analogue interfaces for the connection of system-neutral terminals.

The 8SLA-module-board 19" with the Siemens item number S30810-Q2925-X is a subscriber-module with 8 analogue slots for the connection of system-neutral terminals.

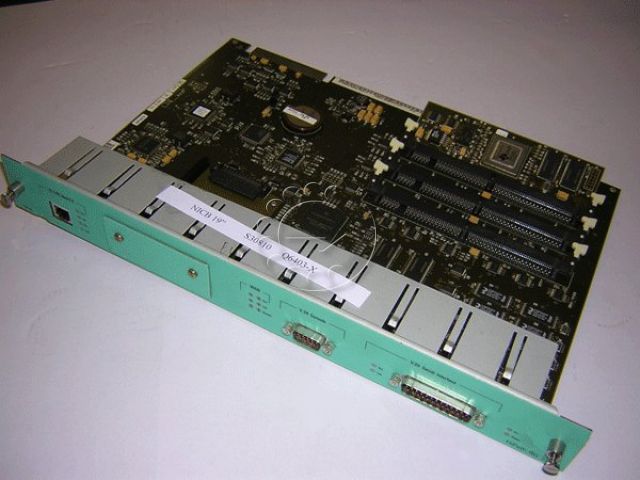

The NIC board is a board for the Hinet VS 1600.

The SLAS4 is an analogue expansion board with4 a/b connections for the Siemens Hicom 100E (108, 112, 118) andOctopus 10A/20A/30A.

The STLS4-module board S30810-Q924-A313 with a cover-panel is intended for the Hinet V 1600 and has 4 S 0 -interfaces, which can be used as external trunk-lines in TE-Mode or alternatively as an internal interface (Bus PMP) in NT-Mode.

The STLS2-module board S30810-Q924-B313 with a panel for the Hinet V 1600 and has two S 0 -interfaces, which can be activated and run as external trunk lines in TE-mode or alternatively as internal interfaces (Bus PMP) in NT-Mode.

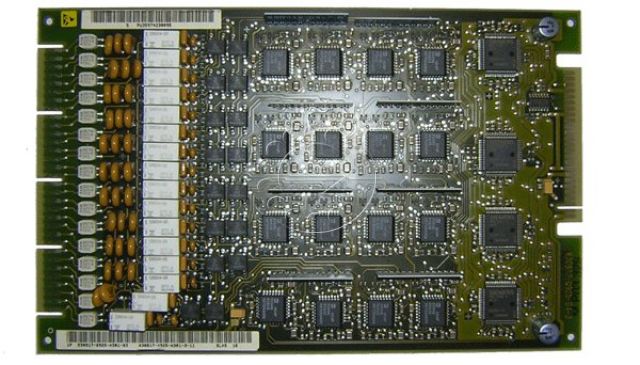

The SLAS16-module board S30122-Q921-A301 is a subscriber-replacement-board with sixteen analogue interfaces for the connection of system-neutral terminals.

The GEE-module board S30817-Q0951-A301 offers four call-charging-meters which enable the registration of 12 kHz fee-impulses over analogue trunk-lines.

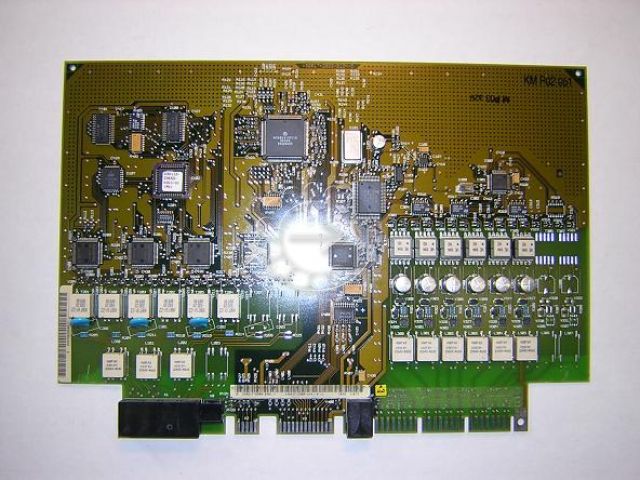

The SBSD is the central board for the Hicom 116, 6x S₀- and 6x a/b connections.

The SBSD is the central board for the Hicom 116. 6x So and 6x a/b connections.

The SBSD is the central board for the Hicom 116. 6x So and 6x a/b connections.

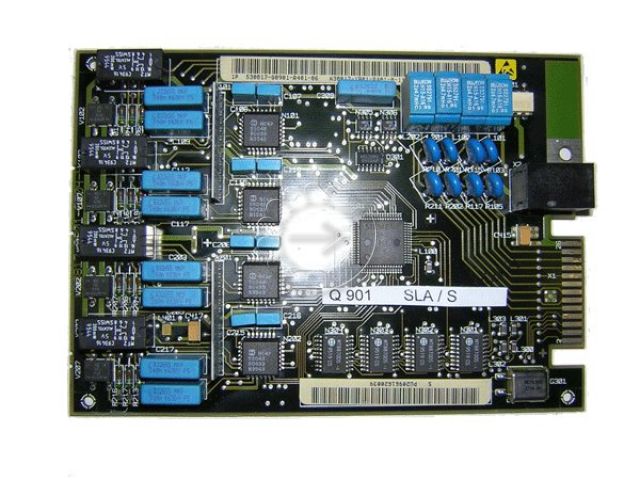

The SLA/S is an analog expansion board for 8 a/b connections.

The Flatpack F is the central control board of the Hicom 150E Office One in theversion 2/4/4 for: 2x S₀ internal/external (ISDN connections ), 4x U_P0-interfaces for system telephones ( all OptiSet) 4x analogue interfaces for ie. cordless telephone, fax, modem, etc.

The PC8 is a central control unit.

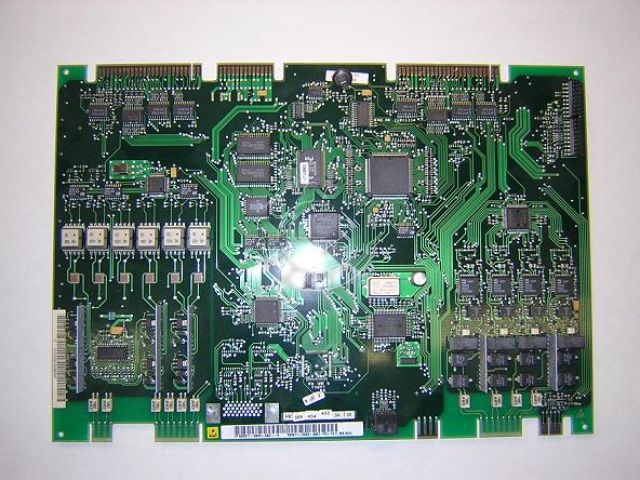

The MB (Motherboard) 6/4 module board S30817-Q920-A701 is the central-control-module biard for the Hicom E 118. Starting at software-version V2.1, the module board is deployed in the Hicom 100E.

The MB (Motherboard) 4/4 module board S30817-Q920-B701 is the central-control-module for the Hicom E 112. The module board is deployed in the Hicom 100E starting at software-version V2.1.

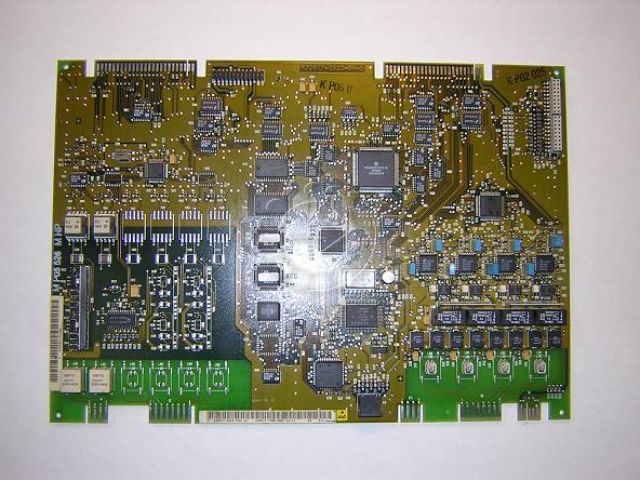

The MB (Motherboard) 2/4 module board S30817-Q920-C701 MB2/4 is the central-control-module board for the Hicom E108. The module board is deployed in the Hicom 100E starting at software-version V2.1.

The SLU8-module board S30817-Q922-A301 is a subscriber-module-board with 8 digital U P0-interfaces for the telephone system HiPath 3000.

The SLU8-module board S30817-Q922-A301, including a cover-plate, is a subscriber-module-board with 8 digital U P0-interfaces for the operation with the Hinet V1600 telephone system.
