PBX Expansion Boards » Unify / Siemens » Hipath 4000

Data backup carrier slot for OpenScape 4000 V7.0

HD-ADAP3 V0.2 for DSCXL2+

The LTUCX-module board S30810-Q2166-X (Line Trunk Unit Control, Extended) for the Hicom 300E offers an interface between the central unit and the peripheral unit.

The STMA-module board S30810-Q2160-X (Subscriber and Trunk Module for ATM) offers an optical 155 MBit/s interface for multi-mode-fiber optic cable.

The APPS-module board S30050-Q7065-X (Analogue Ports Power Supply) is intended for the Hicom 300E.

Ring generator module RGMOD for Hicom 300 und HiPath 4000

Ring generator module RGMOD for Hicom 300 und HiPath 4000

Supports four ISDN Basic Rate Interfaces BRIs

Central Processor Board for HiPath 4000 - Data and Switch Processor for Compact PCI/LAN

Central Processor Board for HiPath 4000 - Data and Switch Processor for Compact PCI/LAN

Data backup carrier slot for OpenScape 4000 V7.0

Hard drive frame

The APPCU (Universal adapter plug universal with circuit protection) serve as 2 Mbps-plugs for the connection of 75 Ohm- as well as 120 Ohm-lines on the telephone systems Hicom 300/300E and Hipath 4000.

The adapter is intended for the connection of DIUS2- or DIUN2 module boards utilized in Siemens networks for optical connections over long distances.

Multimode-LWL-Adapter 850nm für Baugruppen DIUN2, DIUN4 und DIUT2

Multimode-LWL-Adapter 1300nm für Baugruppen DIUN2, DIUN4 und DIUT2

Surge protection adapterfor Hicom 300

Surge protection adapter for Hicom 300

PC-Baugruppe für den Vermittlungsplatz AC5 bzw. AC-Win.

The SL200 LAN board is an add-on board for the DSCX in the HiPath 4300 and the DPC5 in the HiPath 4500. In the HiPath 4300, the DSCX board operates as a part of the switching unit and the ADP. In the HiPath 4500, the SL200 board is used in the ADP only.

Patch-Panel with 24 RJ45-socket NPPAB

Patch-Panel with 24 RJ45-socket NPPAB

Patch-Panel with 20 RJ45-socket NPPAB

Patch-Panel with 8 RJ45-socket NPPS0

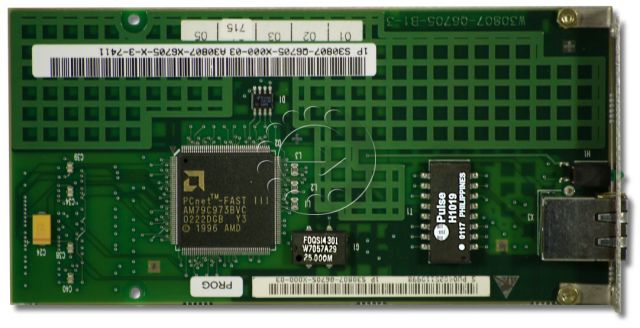

Withthe LAN module SL100 the telephone system can be integrated into the users LAN network. The module is configured as accessory module for the DSCX S30810-Q2261-X.

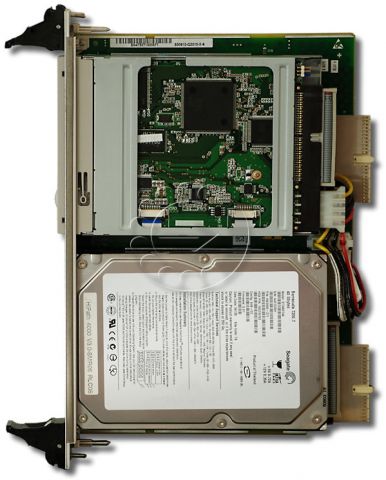

Support for MO-drive harddisk Hipath 4000

The TMBD-modue board S30810-Q2025-X300 has four trunk-sets, which are utilized to signal with main features, as well as for the extension-signalizing with impulse features.

The DIUS2-moduleboard S30810-Q2096-X100 Digital Interface Unit ISDN is intendedfor the Siemens Hicom 300 and HiPath 4000. The module board has adigital S 2-interface for China.

The PSIO-module board S30810-Q2139-X offers a total of six V.24-interfaces for synchronized and a-synchronized data transmission.

The SLMA16-module board S30810-Q2141-X (Station Line Module Analog) forms the connection between the analogue subscribers and the Hicom 300/300E telephone system.

The HUBC-module board (Hub Controller) S30810-Q2143-X enables the access to an external server via an internal system Atlantic-LAN.

The LTUCE-module board S30810-Q2148-X (Line Trunk Unit Control, Extended) for the Hicom 300E offers interfaces for the connection the central unit and the peripheral unit.

The SLC16-module board S30810-Q2151-X300 (Subscriber Line Cordless) for the Hicom 300E with 16 U_P0/E-interfaces can be operated in all Hicom 300E hardware-platforms starting at version 1.0.

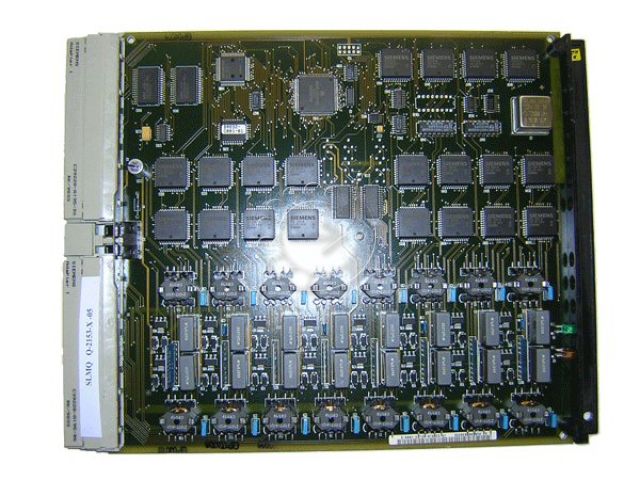

The SLMQ-module board S30810-Q2153-X100 (Subscriber Line Module Digital ANSI-U) for the HiPath 4000 form the line terminators which consist of 16 two-wired digital interfaces according to the ANSI-U-process.

The SLMA16-module board S30810-Q2157-X (Station Line Module Analogue) is the connective link between the analogue subscribers and the Hicom 300/300E system.

The TM2LP-module board S30810-Q2159-X100 (Universal analogue trunk module) is a network-module board with 8 analogue interfaces for networking, which operate according to the loop-process.

The TM2LP-module board S30810-Q2159-X110 (Universal analogue trunk module) is a networking module board with eight analogue interfaces.

The TM2LP-module board S30810-Q2159-X120 (Universal analogue trunk module) is a networking-module with eight analogue interfaces.

The TM2LP-module board S30810-Q2159-X130 (Universal analog trunk module) is a networking-module with eight analogue interfaces.

The TM2LP-module board S30810-Q2159-X160 (Universal analogue trunk module) is a networking-module with eight analogue interfaces.

The STMA-module board S30810-Q2160-X (Subscriber and Trunk Module for ATM) offers an optical 155 MBit/s interface for a multi-mode-fiber optic cable.

The STMD2-module board S30810-Q2163-X (STMD2 Station/Trunk Module Digital S 0 + SLMS Staion Line Module Digital S 0) offers eight S 0-interfaces with each having two B-channels for the voice-/data-transmission and a D-channel for signaling.

The STMD2-module board S30810-Q2163-X100 (STMD2 Station/Trunk Module Digital S 0 + SLMS Staion Line Module Digital S 0) offers eight S 0-interfaces with each having two B-channels for the voice-/data-transmission and a D-channel for signaling.

The module-board SLMO (Subscriber Line Module) has 16 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The module-board SLMO (Subscriber Line Module) has 24 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The module-board SLMO (Subscriber Line Module) has 24 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The STHC-module board S30810-Q2169-X (Subscriber Trunk Hybrid Card) combines the functions of a SLMO- and an STMD-module board.

The SLOP2-Baugruppe S30810-Q2169-X100 (Subscriber Line Module Optimized Performance) for the Hicom 300 has 24 Up0/E-interfaces for the connection of system specific telephones.

The STMD8-module board S30810-Q2174-X (Station/Trunk Module Digital S 0) offers eight S 0-interfaces for the lines between the telephone system and the attendant console. The module board offers two B-channels for voice-/ data-transmission and a D-channel for signalization per S 0-interface.

The STHC-module board S30810-Q2177-X combines the functions of a SLMO- and a STMD-module board. Sie realisiert 16 U P0E- und 4 S 0-Schnittstellen, die den Ports fest zugeordnet sind. The board offers 16 U P0E- and 4 S 0-interfaces which are assigned to specific ports.

The SD3HP is a framework for the inclusion of SCSI drives for the Hicom 300 and HiPath 4000.

The DIUC-module board S30810-Q2185-X (Digital Interface Channel Associated Signal) enables the activation of trunk-systems and PABX's via PCM30-lines and the Hicom 300 and HiPath 4000 systems.

The SLMAC Subscriber Line Module Analog Clip board offers 24 analog user sets including clip-functions and supports all functions of the PABX-terminals.

An SLMA3 board interfaces between the system and analog devices. These boards convert signals from analog-to-digital and from digital-to-analog.

The SLC24-module board S30810-Q2193-X200 (Subscriber Line Modul CMI24) for the Hicom 300E and the HiPath 4000 with 24 U P0/E-interfaces enable the activation of the CMI base stations and the administration of cordless subscribers.

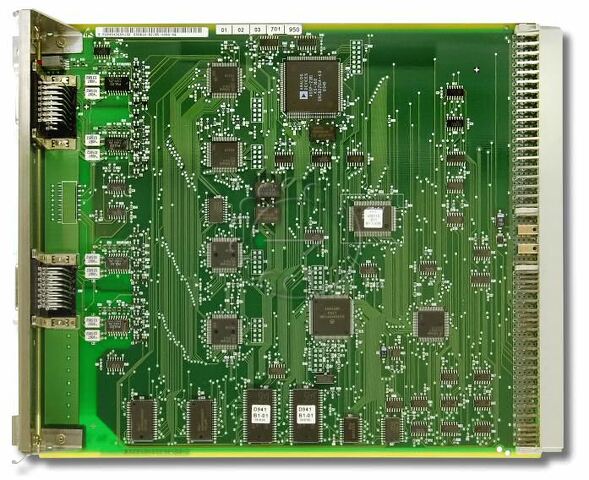

S30810-Q2195-X DIUN4

The DIUN2-moduleboard S30810-Q2196-X DIUN2 Digital Interface Unit ISDN with two S2M-interfaces offer each 30 voice-channels for trunk-lines via theNT or for the networking of PBX systems.

The WAML-module board S30810-Q2205-X (WAN Access Module LAN) for the Hicom 300E enables the connection between the IP-router the Atlantic-LAN (ALAN), an external LAN (ELAN) and an ISDN-line.

HiPath 4000 IISDN SDN S0 trunk lines-/ user boardforthe STMD2-function without power supply

HiPath 4000 Digital S0 Module STMD3 with Local Power Supply

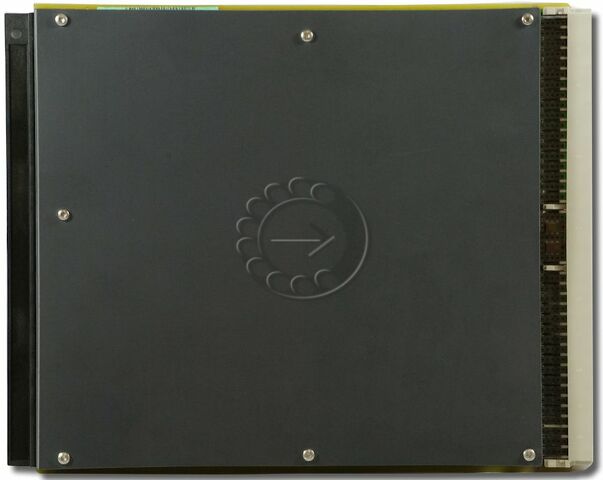

The SLMAE board (Subscriber Line Module Analog Enhanced) offers 24 analog a/b interfaces.

The SLMAE board (Subscriber Line Module Analog Enhanced) offers 24 analog a/b interfaces.

up to 60 S2M trunk lines for HiPath 4000

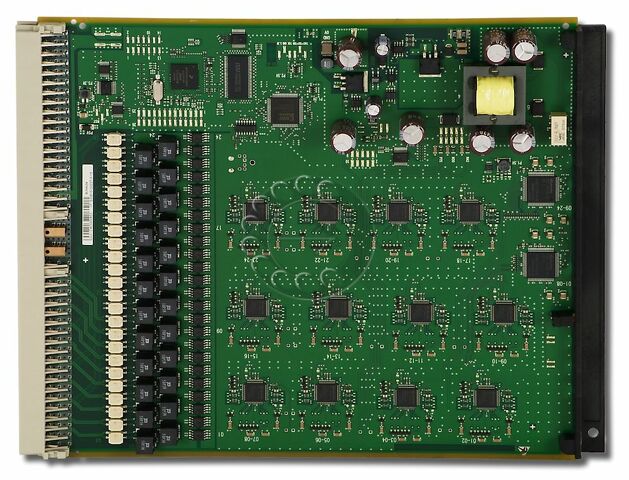

Subscriber Line Module Analog with MWI SLMAV, 24 Ports

24 analogue subscriber-lines for HiPath 3800

The VCM-module board S30810-Q2235-X (Voice Compression) for the Hicom 300E, is a device which compresses and decompresses voice-channels.

The VCM-module board S30810-Q2235-X100 (Voice Compression) for the Hicom 300E, offers seven voice-channels of 64 kbit/s to 16 kbit/s either compressed or decompressed.

Subscriber Line Module Analog Board with 24 analog extensions

The DSCX-module board S30810-Q2261-X (Data Processor and Serial Channel Extended) is the central-control-module board starting at Hicom 300H V1.0, which is deployed with the Hicom 330E.

The DSCX board(Data Processor Board and Extended Serial Channel) is the central processor module of the HiPath 4300.

Line Trunk Unit Control Advanced board for HiPath 4000 and Openscape Business 4000

Line Trunk Unit Control Advanced board for HiPath 4000 and Openscape Business 4000

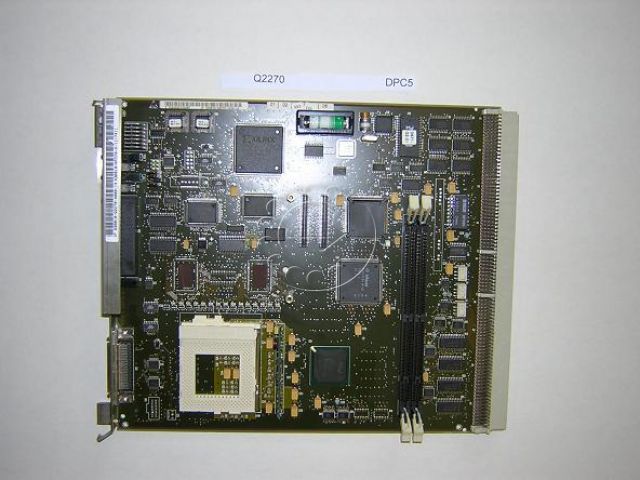

The processor-module-board DPC5 is the central control unit for the Hicom 300E.

The processor board (DPC5) is the central controler for a Siemens telephone system Hicom 300E / H3000 / H4000, HiPath 4300, and HiPath 4500.

Trunk Module EM World 2 TMEW2 4 channels

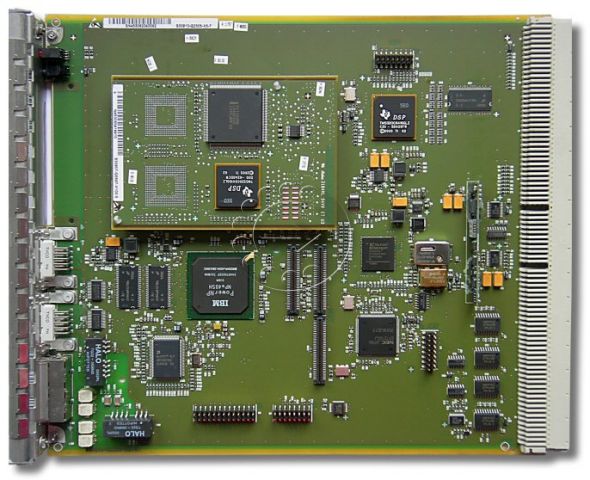

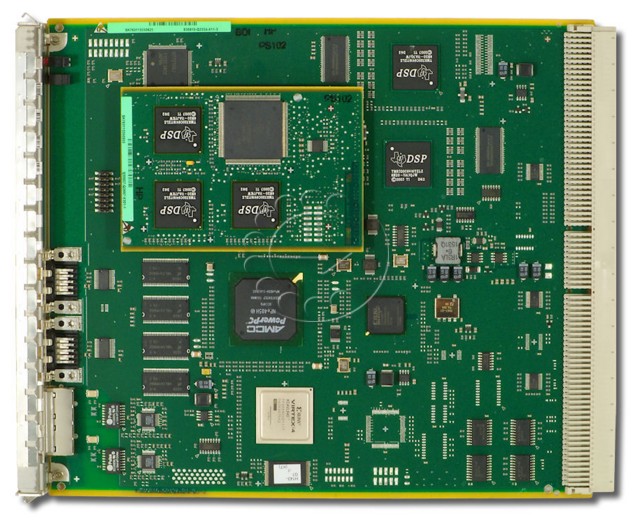

The Control Unit IP HiPath HG 3575 (NCUI) board is the main central control for the IPDA and gateway unit in a local system as part of a distributed PBX.

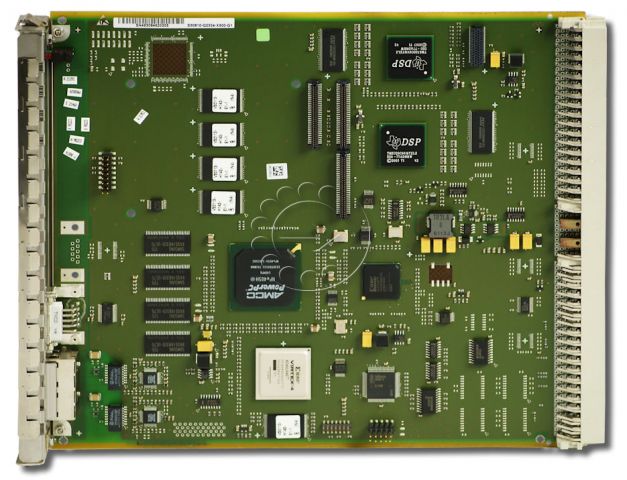

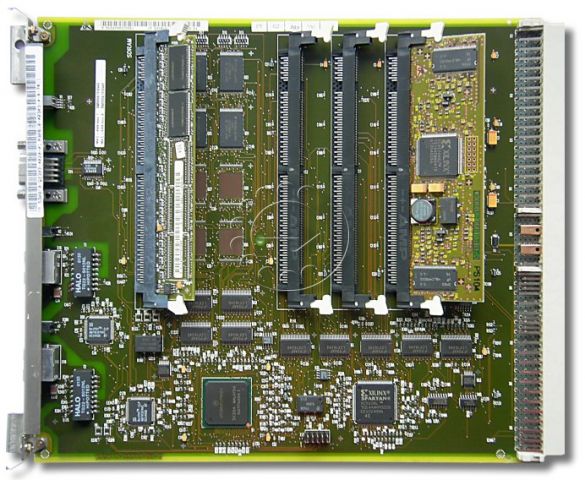

The subscriber trunk module IP HiPath 3570 (STMI) board is a interface board for the HiPath 4000 in a IPDA (IP Distributed Architecture) System. The STMI board converts the speech data of the PCM highways into IP data for the 10/100 Base-T LAN interface.

The subscriber trunk module IP HiPath 3570 (STMI) board is a interface board for the HiPath 4000 in a IPDA (IP Distributed Architecture) System. The STMI board converts the speech data of the PCM highways into IP data for the 10/100 Base-T LAN interface.

120-channel-Version with 64 MB SDRAM/16 MB Flash Memory with fully equipped PDMX

60-channel-Version with 128 MB SDRAM/32 MB Flash Memory with underequipped PDMX

120-channel-Version with 128 MB SDRAM/32 MB Flash Memory with fully equipped PDMX

60-channel-Version with 64 MB SDRAM/16 MB Flash Memory with underequipped PDMX

Support for MO-drive harddisk Hipath 4000

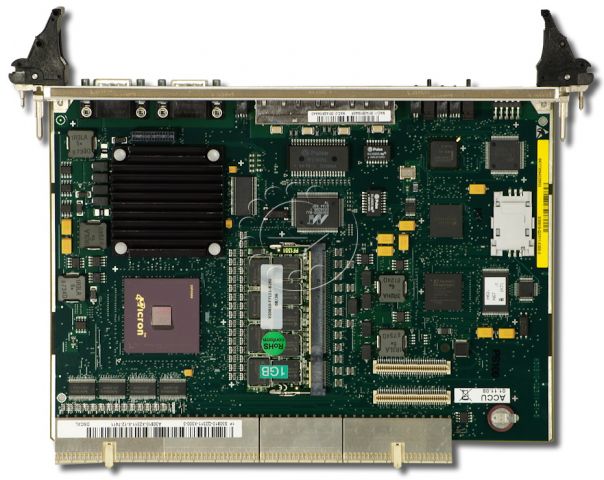

The module-board DSCXL (Data and Switch Processor for CompactPCI/LAN) is the main-processor-module for the 4000 V2.0

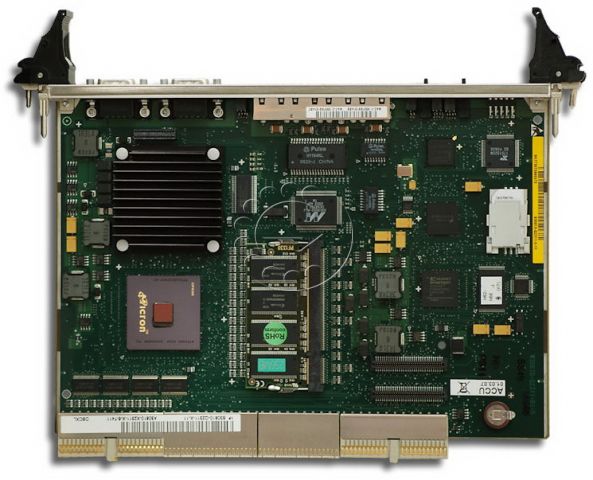

The module-boardDSCXL Data and Switch Processor for CompactPCI/LAN ist hecentral-processing-board for the HiPath 4000 V4.0

Subscriber Trunk Module IP HiPath 4000

The STMI2 board Subscriber Trunk Module IP HiPath 3570 V2.0 forms the interface for HiPath 4000 in a IPDA-system IP Distributed Architecture.

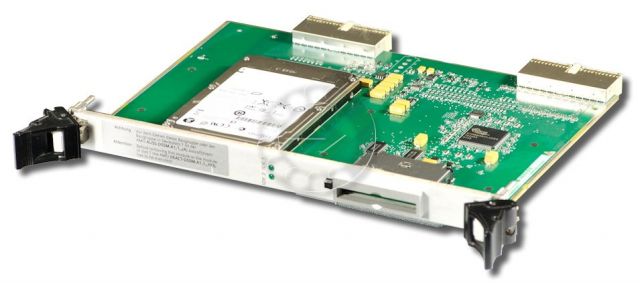

Die HDCF-Baugruppe besteht aus einer Harddisk und einer Compakt-Flash-Card.

Main control board and gateway-unit for the IPDA

Common HiPath Gateway HG 3500 für HiPath 4000 V4.0

Common HiPath Gateway HG 3500 für HiPath 4000 V4.0

Common HiPath Gateway HG 3500 für HiPath 4000 V4.0

Analog Trunk Module TMANI with Metering GEE
