PBX Expansion Boards » Unify / Siemens » Hicom 300 E / H

C39228-A7195-A11 Adapter SIVAPAC/SIPAC

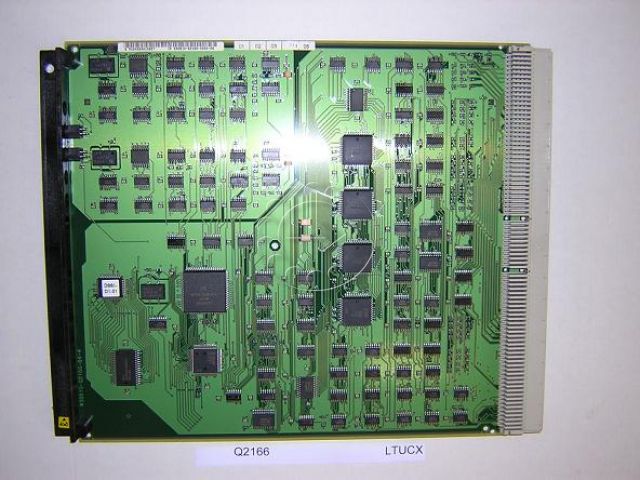

The LTUCX-module board S30810-Q2166-X (Line Trunk Unit Control, Extended) for the Hicom 300E offers an interface between the central unit and the peripheral unit.

The MD-module board S30050-Q2026-X (Message Distributor) has the following functions within the Hicom 390.1/391.1 system; multiplexes or de-multiplexes the HDLC-data-lines between the central control and the peripheral unit.

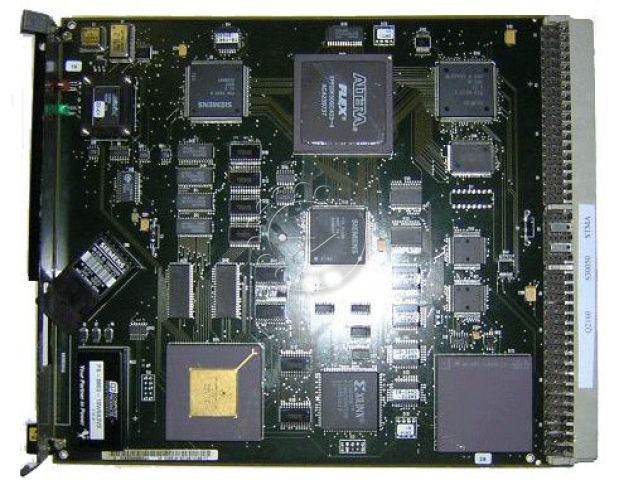

The STMA-module board S30810-Q2160-X (Subscriber and Trunk Module for ATM) offers an optical 155 MBit/s interface for multi-mode-fiber optic cable.

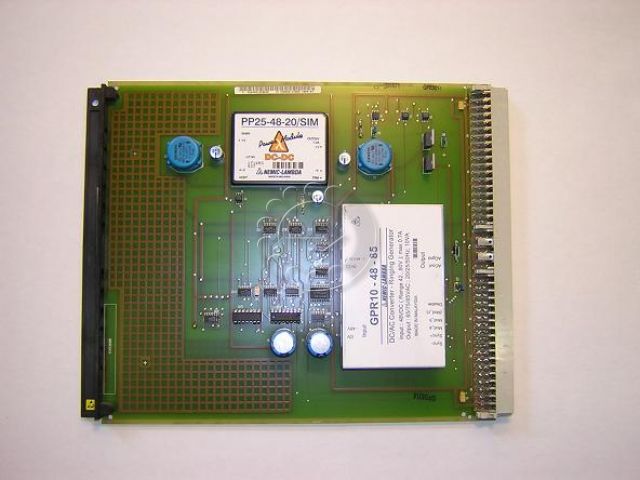

The APPS-module board S30050-Q7065-X (Analogue Ports Power Supply) is intended for the Hicom 300E.

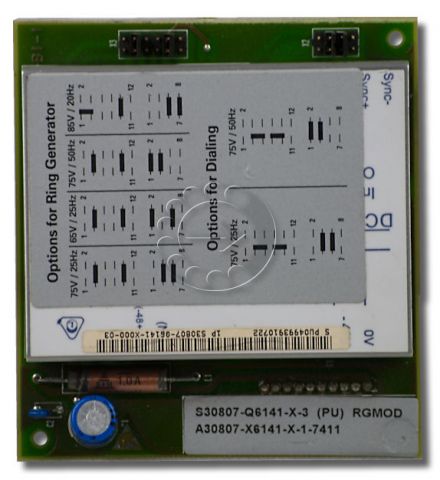

Ring generator module RGMOD for Hicom 300 und HiPath 4000

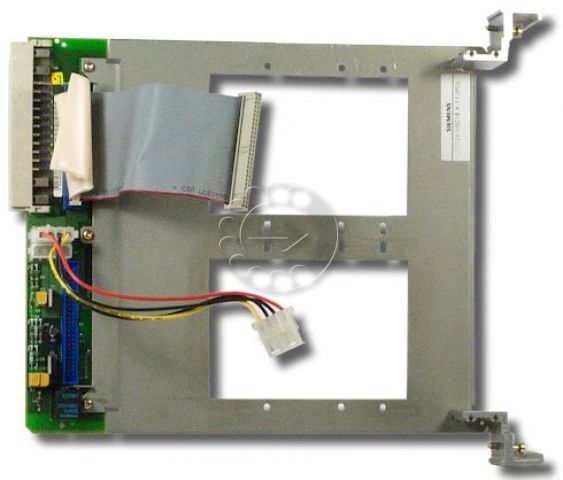

Hard drive frame

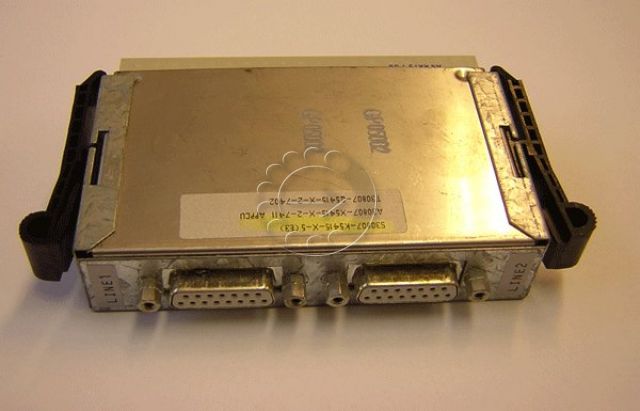

The APPCU (Universal adapter plug universal with circuit protection) serve as 2 Mbps-plugs for the connection of 75 Ohm- as well as 120 Ohm-lines on the telephone systems Hicom 300/300E and Hipath 4000.

The adapter is intended for the connection of DIUS2- or DIUN2 module boards utilized in Siemens networks for optical connections over long distances.

The DM3L-module board S30807-Q2230-X500 (Data Processor 386 Mono with LAN) is an alternative variant of the module board; S30807-Q2230-X for the Hicom 300/300E.

PC-Baugruppe für den Vermittlungsplatz AC5 bzw. AC-Win.

Ring generator RGMOD for Hicom 300 E V3.0, Hicom 300 H V1.0 and the HiPath 4000.

The M2M-module board (Memory Module 2 MB) for the Hicom 300/300E is a dynamic storage unit with a capacity of 2 MB and is utilized as a common memory.

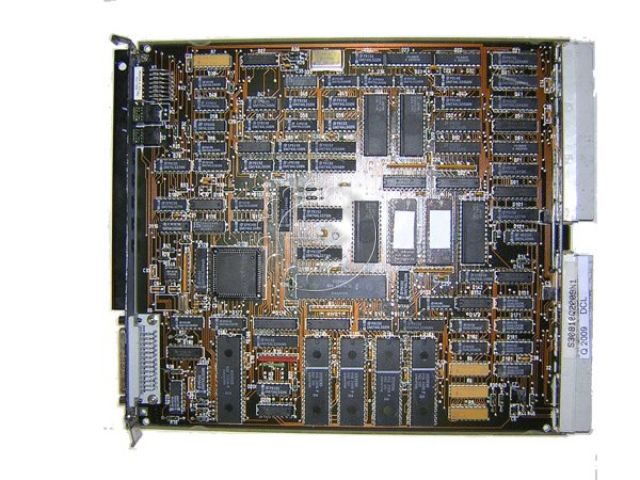

Data Communication Link is a module board for the Hicom 300 / 300E and enables the connection between the control- and peripheral-connector-units LTU or the service-unit SU.

Data Communication Link is a board for the Hicom 300 / 300 E and provides the link between the controller and the peripheral connection units LTU or the service unit SU for signaling

The TMEM-module board S30810-Q2012-X (Trunk Module Bothway Current) has four full-duplex cross connection batches which manage the incoming as well as outgoing house-, trunk-, and feedback-signals between the main- and   sub-system, in accordance to the  alternating current -  audio frequency - indication process Nr.1.

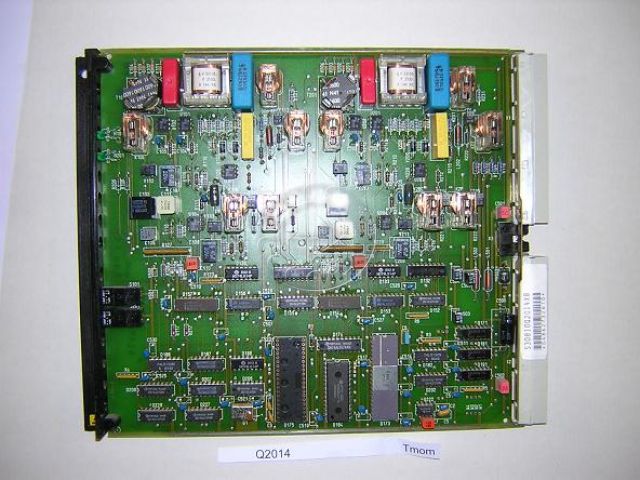

The TMOM-module board S30810-Q2014-X (Trunk Module Outgoing Multipurpose) has two connection sets for the activation of specialized operations within the Hicom 300.

The CONF-module board S30810-Q2021-X (Conference Unit) for the Hicom 300 enables the activation of performance features such as die Leistungsmerkmale call-forwarding, call-waiting and conference-calls.

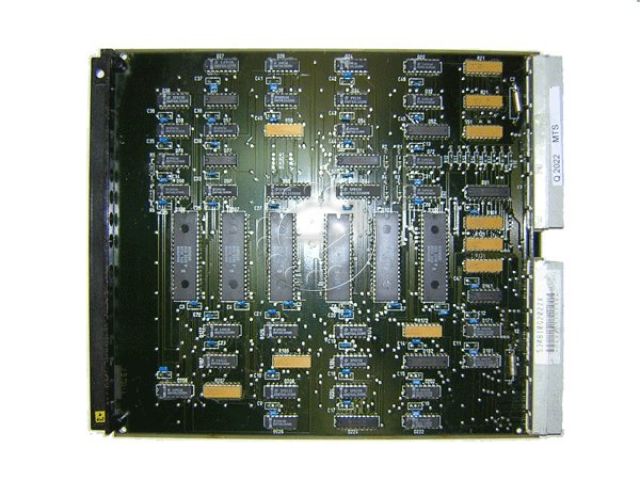

The MTS-module board S30810-Q2022-X (Memory Time Switch) for the Hicom 300/300E is utilized as the main-element within the digital  wird als Grundelement des digitalen crossbar switch or SN (Switching Network).

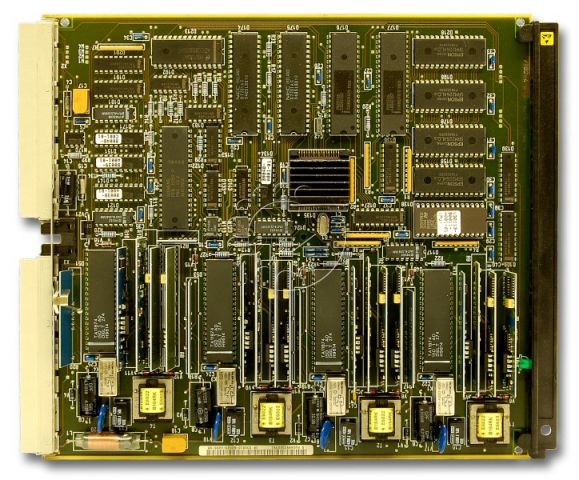

The SLMD-module board S30810-Q2023-X200 is a Line Lock-out board with four digital subscriber-sets for the connection of  ISDN-end-terminals via the U*-interface within the systems Hicom 300/300E.

The TMBD (Trunk Module "Bundespost Deutschland") (4 circuits per module) can be used for signalling with main station interfaces (MOSIG) as well as for direct inward dialing with the pulse signalling system.

The TMBD-modue board S30810-Q2025-X300 has four trunk-sets, which are utilized to signal with main features, as well as for the extension-signalizing with impulse features.

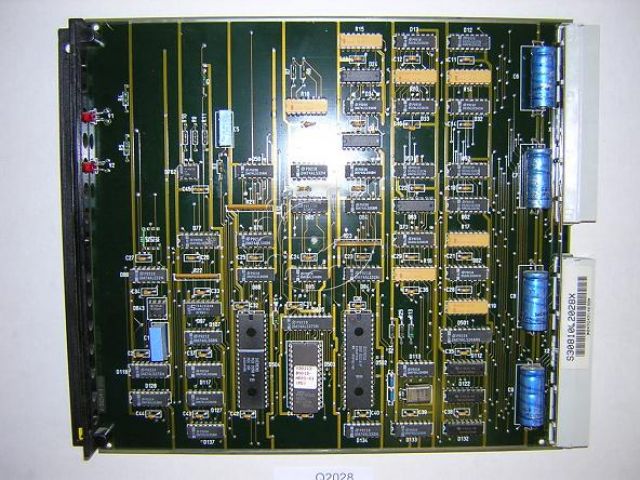

The LTUC-module board S30810-Q2028-X (Line Trunk Unit Control) for the Hicom 300/300E which constitutes the interface between the transducer for the signaling-channel DCL, the crossbar switch CN and the peripheral BG of the LTU-frame.

Peripheral Clock Generator is a board for the Hicom 300/300E. The System Hicom is run synchronized.

The SIU-module board S30810-Q2031-X (Signaling Unit) for the Hicom 300/300E, which provides the system with audbile tones, announcements and music-on-hold.

The TMBP-module board S30810-Q2032-X (Trunk Module Bothway Inter PBX Simultaneous) has four dual-connection sets for incoming and outgoing signals between two sub-systems.

The FDCA board for the Universal Server Shelf (UNS) from Siemens, is compatible to the Hicome 300E V3.1 (SP300-V3.2).

Board for the Common Control Universal Server (CCUS) from Siemens. Compatible to Hicom 300 E V3.1.

The LCC

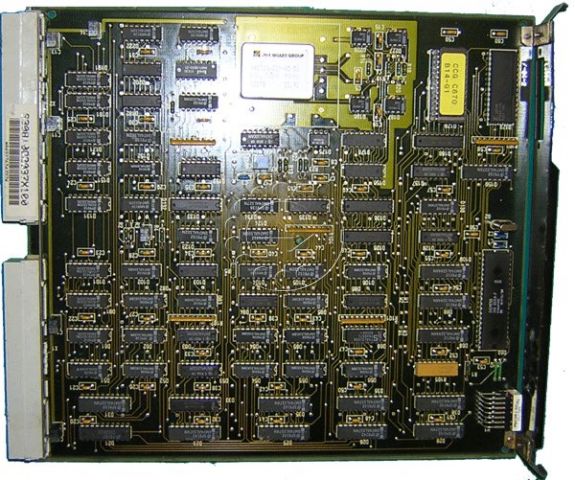

The central clock generator (CCG) in the Hicom 390.1 system provides the users with the reference clock signals CKAREF (2048 Mhz) and FMBREF (4-kHz synchronizing pulse).

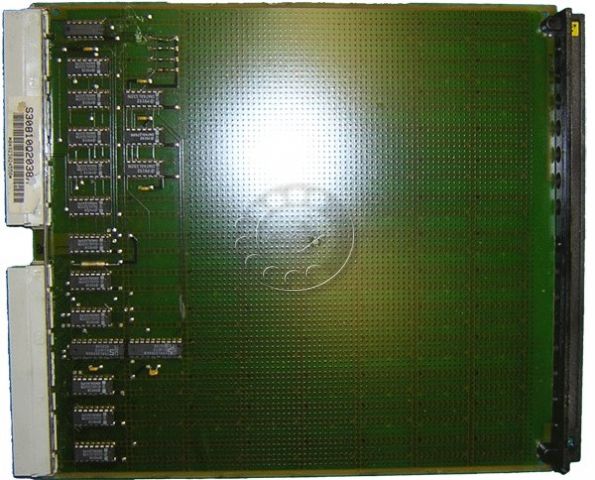

The central clock distributor CCD is one of the central modules and, together with the CCG module, comprises a failure unit.

The IOCG is used with the Hicom 390 systems and is a component of the group processor (GP) (DP/LTG). It contains the input/output control for the line trunk group (LTG) and the clock repeater.

Station Line Module Analog is a board for Hicom 300/300E and is the interface between the analog stations and the Hicom system.

The SLMB-module board S30810-Q2052-X (Station Line Module Burstsystem) offers 8 U 200-interfaces which enable the connection of system-specific end terminals and the attendant terminal AC2.

Die Baugruppe SLMA (Station Line Module Analog) mit der Sachnummer S30810-Q2057 ist das Bindeglied zwischen den analogen Teilnehmern und dem System Hicom mit 16 Teilnehmerleitungen.

The RG-module board S30810-Q2058-X (Ring Generator) for the Hicom 300/300E generates an AC voltage of 65 V or 85 V with a frequency of 25 Hz or 50 Hz. The module board enables analgoue calling and alternating current-dialing in inter-communication traffic.

The TMEMW-module board S30810-Q2092-X (Trunk Module Ear & Mouth/World) has four dual-interconnection sets E&M for incoming and outgoing signals between the main- and sub-system.

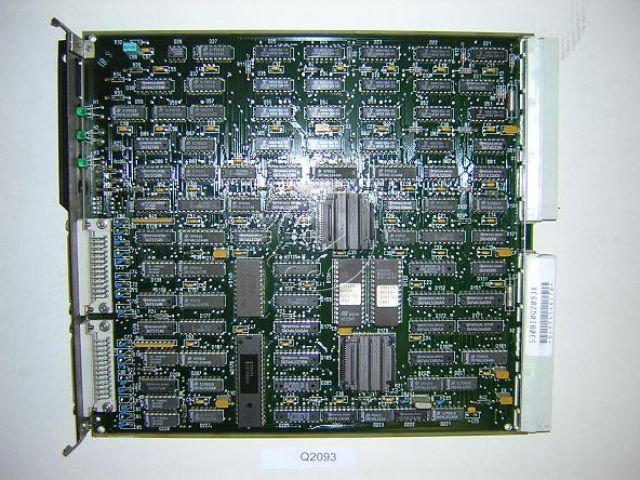

The LCU-module board S30810-Q2093-X (Line Control Unit) enables the connection, via two available V.24-interfaces, of terminals and / or data processing equipment to the Hicom 300 system.

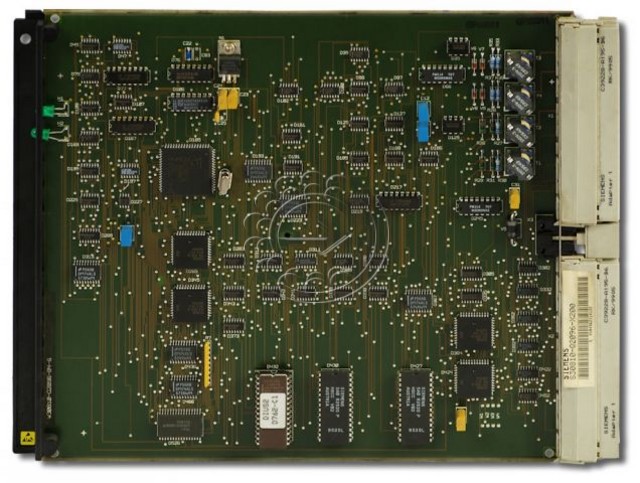

The DIUS2-moduleboard S30810-Q2096-X Digital Interface Unit ISDN is intended forthe Siemens Hicom 300. The module board has a digital S 2-interfacefor ISDN.

The DIUS2-moduleboard S30810-Q2096-X100 Digital Interface Unit ISDN is intendedfor the Siemens Hicom 300 and HiPath 4000. The module board has adigital S 2-interface for China.

The DIUS2-module board S30810-Q2096-X200 (Digital Interface Unit ISDN) is intended for the Siemens Hicom 300 and HiPath 4000. The module board has a digital S 2-interface for EURO-ISDN.

The Interface Processor, IP is a board for the Hicom 300/300E telephone system and has the function to direct the message exchange between the Switching Unit (SWU) and the servers.

The M8M-module board (Memory Module 8 Mbyte) for the Hicom 300 / 300E is a dynamic storage unit with a storage capacity of 8 Mbyte which can be used as a common memory.

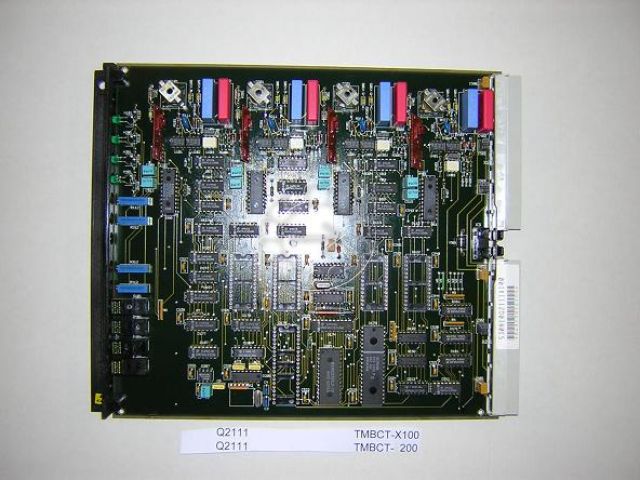

The TMBCT-module board S30810-Q2111-X100 (Trunk Module Bothway Current) offer four interface according to alternate current / audio frequency -recognition-procedures, which is the Nr.1 tool for incoming and outgiong; home- and trunk-calls transfering between the main- and sub-systems.

Trunk Module Bothway Current Tone Frequency for Hicom 300/300E

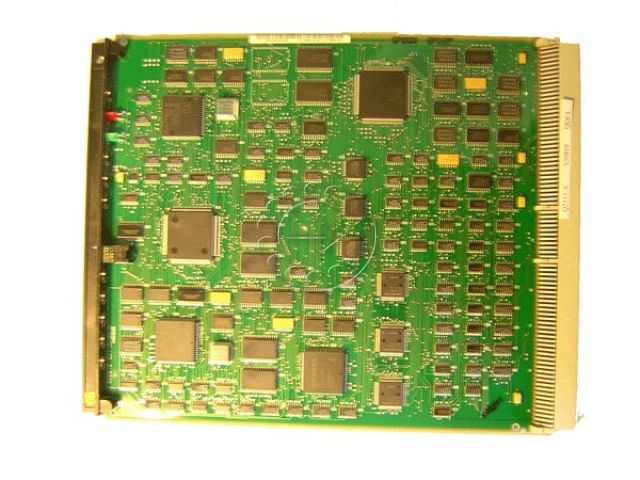

The QDCL-module board S30810-Q2113-X (Quad Data Communication Link) for the Hicom 350E serves as an interface between the peripheral and the central data-processor DP (DP4L or DM3L).

The QDCL-module board S30810-Q2113-X (Quad Data Communication Link) for the Hicom 350E is the interface between the peripheral- and the central data processing-unit DP (DP4L or DM3L).

The MBU-module board S30810-Q2114-X (Message Buffer Unit) with signal exchange controls the signal- and data-traffic between switching unit (SWU), the peripheral unit (LTGs) and the central switching unit (CSN) within the Hicom 300/300E.

The SLMU-module board S30810-Q2115-X (Station Line Module Digital U P0) enables the connection via 16 U P0-interfaces of Siemens SET 551 or PNTs telephones.

The Station Line Module Digital S0 board SLMS allows 8 S0-Interfaces the connection of up to 8 digital terminal per port.

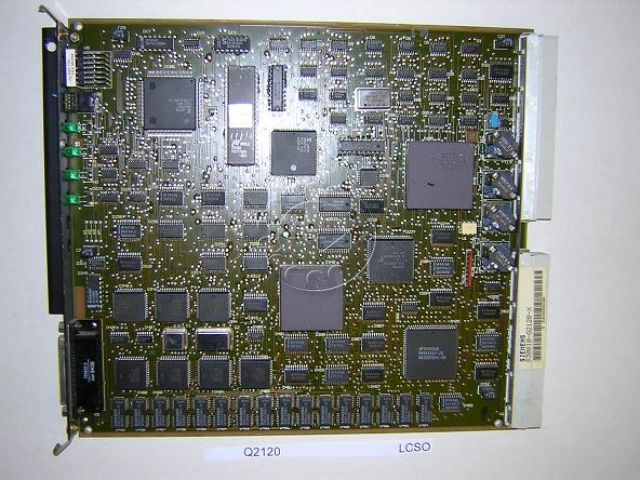

The LCS0-module board S30810-Q2120-X enables via 2 S 0-ports the connection of terminals to the Hicom 300.

The TMBCT-module board S30810-Q2111-X (Trunk Module Bothway Current) has four dual-AC-cross-connection-sets (QS-WES) which can connect two sub-systems.

The MTS-module board S30810-Q2122-X (Memory Time Switch) for the Hicom 300/300E is utilized as the main-element within the digital  wird als Grundelement des digitalen crossbar switch or SN (Switching Network) and is deployed as  an conference-system.

The TMX.21 (Digital Trunk Module) provides the adapter for the data traffic between the public data network IDN and the Hicom system as well as between Hicom and the terminals with X.21 interfaces.

The LTUC-module board S30810-Q2128-X (Line Trunk Unit Control) for the Hicom 300/300E which constitutes the interface between the transducer for the signaling-channel DCL, the crossbar switch CN and the peripheral BG of the LTU-frame.

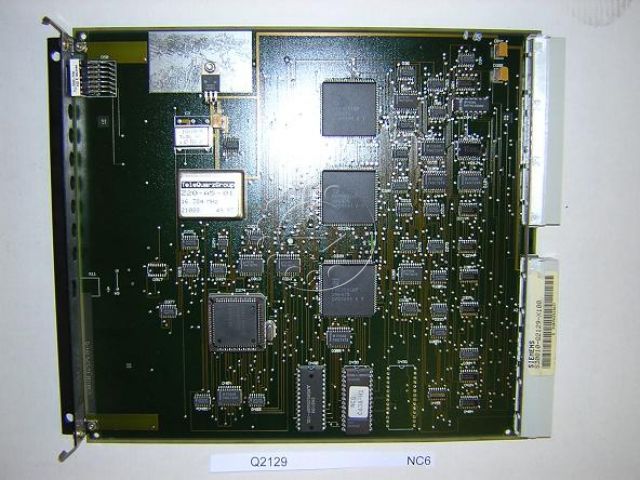

The NCG-module board (Network Clock Generator)  generates the internal clock and in order to synchronize it can receive reference clock signals from the trunk-modules TMX.21, TMD, T1-Board (USA) and DIUxx.

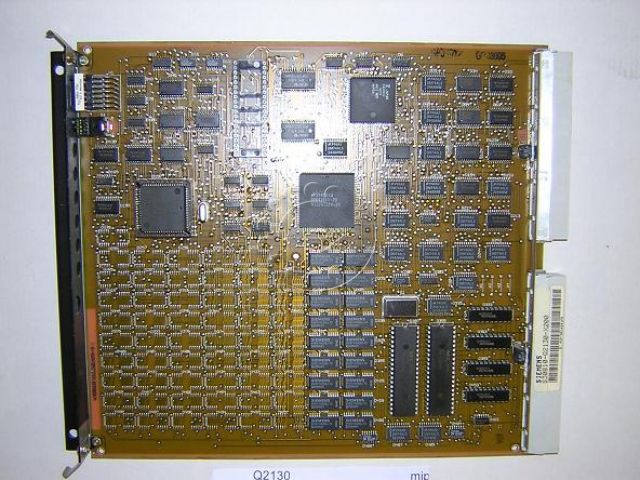

The MIP-module board S30810-Q2130-X (Memory- and Interface-Processor) functions within the System Hicom 300/300E as a signal exchange between the switching unit or SWU and a service module or SM.

The MIP-module board S30810-Q2130-X200 (Memory- and Interface-Processor) functions within the System Hicom 300/300E as a signal exchange between the switching unit or SWU and a service module or SM.

The Stream Control Central board SCC for Hicom 300/300E, is the interface between the central Processor DM80 and the peripheral boards of the Hicom 3X3.

The PSIO-module board S30810-Q2139-X offers a total of six V.24-interfaces for synchronized and a-synchronized data transmission.

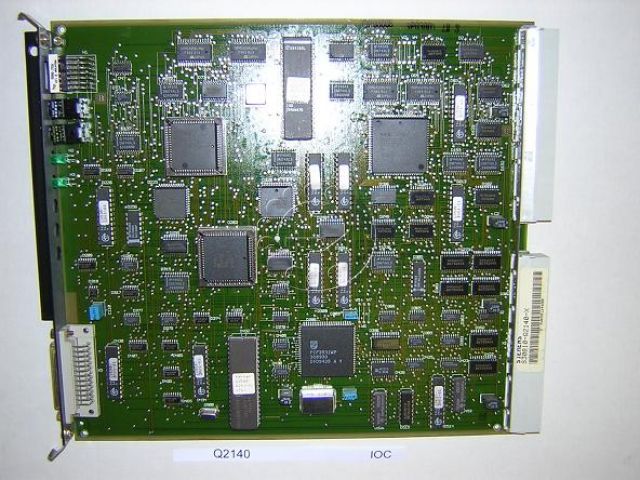

The Input Output Controller module board IOC is deployed within the Hicom 391.3 system. The module board functions as an input-/output-control-unit or as an input-/output-control-unit for the central-unit.

The SLMA16-module board S30810-Q2141-X (Station Line Module Analog) forms the connection between the analogue subscribers and the Hicom 300/300E telephone system.

The HUBC-module board (Hub Controller) S30810-Q2143-X enables the access to an external server via an internal system Atlantic-LAN.

The LTUCE-module board S30810-Q2148-X (Line Trunk Unit Control, Extended) for the Hicom 300E offers interfaces for the connection the central unit and the peripheral unit.

The DPML-module board S30810-Q2149-X (Data Processor Multi/Local) for the Hicom 300 is the central control-processor of the SWU and the server.

The SLMB-module board S30810-Q2150-X (Station Line Module Burstsystem) offers 16 U 200-interfaces which enable the connection of system-specific end terminals and the attendant terminal AC2.

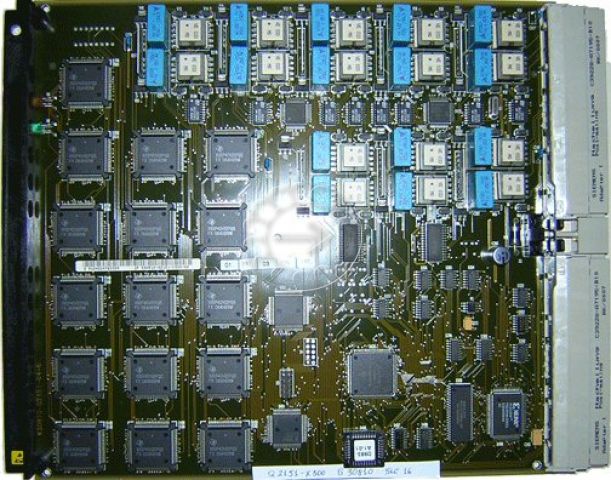

The SLC16-module board S30810-Q2151-X300 (Subscriber Line Cordless) for the Hicom 300E with 16 U_P0/E-interfaces can be operated in all Hicom 300E hardware-platforms starting at version 1.0.

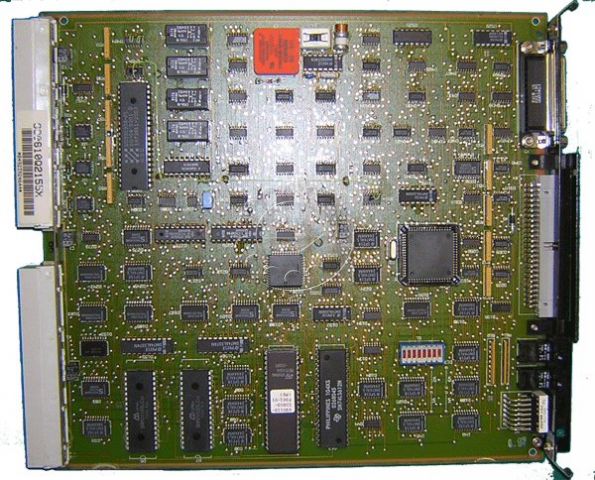

The IOPA-module board S30810-Q2155-X (Input-Output Processor SCSI and Alarm-Control) enables the activation of the peripheral storage (CT / HD) within the servers.

The SLMA16-module board S30810-Q2157-X (Station Line Module Analogue) is the connective link between the analogue subscribers and the Hicom 300/300E system.

The SLMO-module board S30810-Q2158-X (Subscriber Line Module U P0/E Interface) forms the link between the system specific telephones and the Hicom 300E system.

The TM2LP-module board S30810-Q2159-X100 (Universal analogue trunk module) is a network-module board with 8 analogue interfaces for networking, which operate according to the loop-process.

The TM2LP-module board S30810-Q2159-X110 (Universal analogue trunk module) is a networking module board with eight analogue interfaces.

The TM2LP-module board S30810-Q2159-X120 (Universal analogue trunk module) is a networking-module with eight analogue interfaces.

The TM2LP-module board S30810-Q2159-X130 (Universal analog trunk module) is a networking-module with eight analogue interfaces.

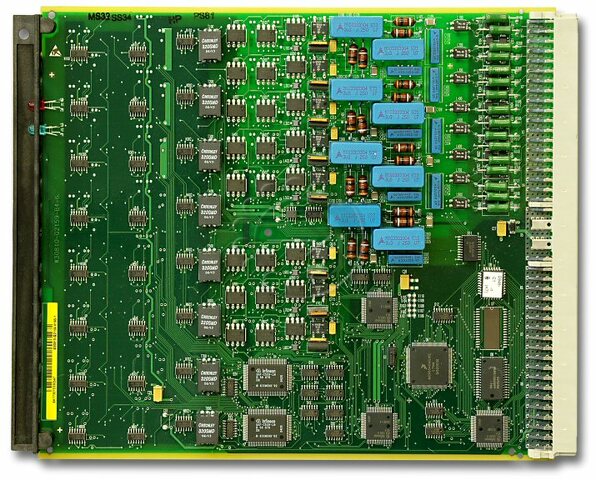

The TM2LP board is a analog trunk module with 8x HKZ and is usedto connect the hipath 3800 system to the analog trunk.

The TM2LP-module board S30810-Q2159-X160 (Universal analogue trunk module) is a networking-module with eight analogue interfaces.

The STMA-module board S30810-Q2160-X (Subscriber and Trunk Module for ATM) offers an optical 155 MBit/s interface for a multi-mode-fiber optic cable.

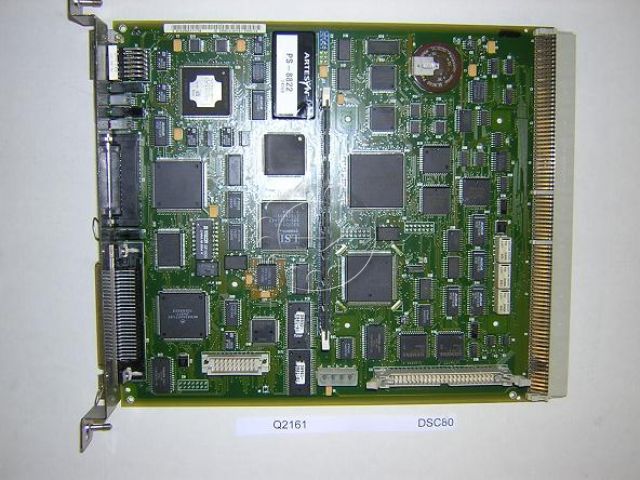

The DSC80 board for the Hicom 310 E and Hicom 330 E, unites all features that a central control unit of a Hicom 300 System requires, onto a single board.

Diese Baugruppe vereint auf einer Leiterplatte alle Leistungsmerkmale, die die Zentralsteuerung eines Hicom 300 Systems benötigt.

The STMD2-module board S30810-Q2163-X (STMD2 Station/Trunk Module Digital S 0 + SLMS Staion Line Module Digital S 0) offers eight S 0-interfaces with each having two B-channels for the voice-/data-transmission and a D-channel for signaling.

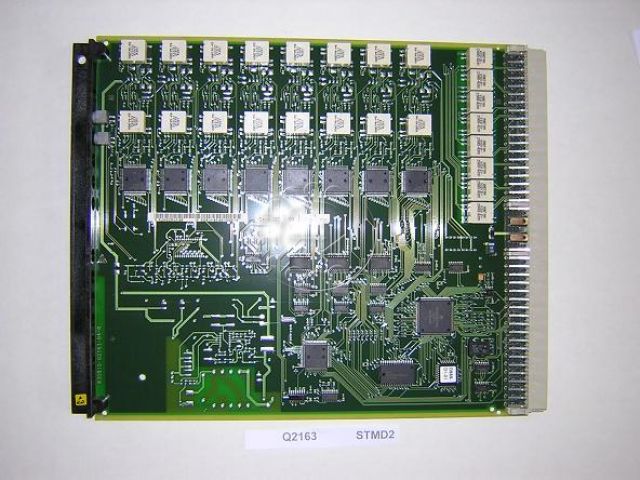

The STMD2-module board S30810-Q2163-X100 (STMD2 Station/Trunk Module Digital S 0 + SLMS Staion Line Module Digital S 0) offers eight S 0-interfaces with each having two B-channels for the voice-/data-transmission and a D-channel for signaling.

The module-board SLMO (Subscriber Line Module) has 16 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The module-board SLMO (Subscriber Line Module) has 24 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The module-board SLMO (Subscriber Line Module) has 24 interfaces according to the U_P0/E-Standard. The board is compatible in the following systems; Hicom 300E , Hicom 300H and HiPath 4000.

The STHC-module board S30810-Q2169-X (Subscriber Trunk Hybrid Card) combines the functions of a SLMO- and an STMD-module board.

The SLOP2-Baugruppe S30810-Q2169-X100 (Subscriber Line Module Optimized Performance) for the Hicom 300 has 24 Up0/E-interfaces for the connection of system specific telephones.

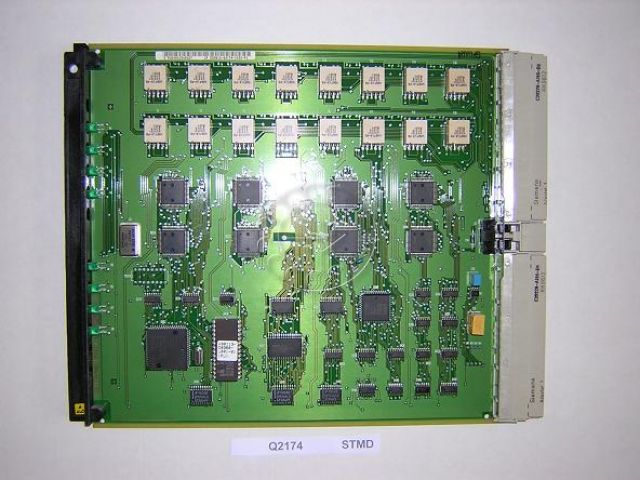

The STMD8-module board S30810-Q2174-X (Station/Trunk Module Digital S 0) offers eight S 0-interfaces for the lines between the telephone system and the attendant console. The module board offers two B-channels for voice-/ data-transmission and a D-channel for signalization per S 0-interface.

The STHC-module board S30810-Q2177-X combines the functions of a SLMO- and a STMD-module board. Sie realisiert 16 U P0E- und 4 S 0-Schnittstellen, die den Ports fest zugeordnet sind. The board offers 16 U P0E- and 4 S 0-interfaces which are assigned to specific ports.

The SLOP2-module board S30810-Q2180-X (Power SLMO) for the Hicom 300 has 24 Up0/E-interfaces for the connection of system specific telephones.

The SD3HP is a framework for the inclusion of SCSI drives for the Hicom 300 and HiPath 4000.

The DIUC-module board S30810-Q2185-X (Digital Interface Channel Associated Signal) enables the activation of trunk-systems and PABX's via PCM30-lines and the Hicom 300 and HiPath 4000 systems.

The Signaling Unit, SIUX2 board is a replacement for the SIU-board in the central and peripheral frames.

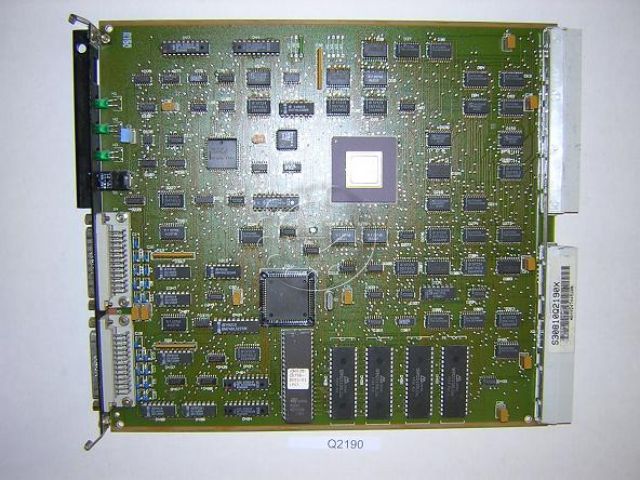

The Line Control/Line Bus Control, LBU-board for the Hicom 300/300E allows the connection of terminals and/or data-processing-systems over two frontsided V.24-interfaces.

The SLMAC Subscriber Line Module Analog Clip board offers 24 analog user sets including clip-functions and supports all functions of the PABX-terminals.

An SLMA3 board interfaces between the system and analog devices. These boards convert signals from analog-to-digital and from digital-to-analog.

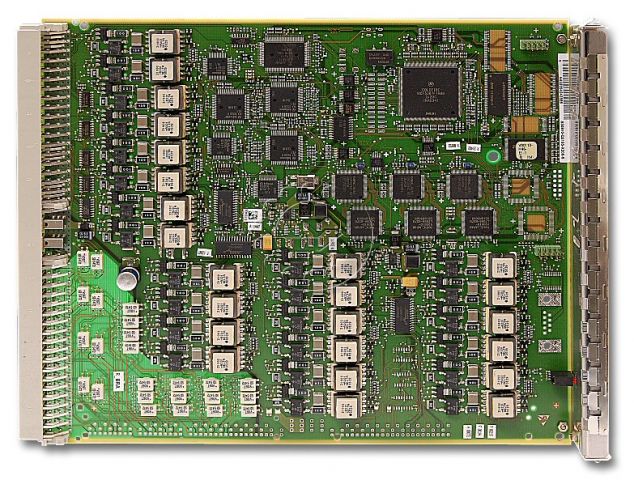

The SLC24-module board S30810-Q2193-X200 (Subscriber Line Modul CMI24) for the Hicom 300E and the HiPath 4000 with 24 U P0/E-interfaces enable the activation of the CMI base stations and the administration of cordless subscribers.

The DIUN2-moduleboard S30810-Q2196-X DIUN2 Digital Interface Unit ISDN with two S2M-interfaces offer each 30 voice-channels for trunk-lines via theNT or for the networking of PBX systems.

The Data Processor 486 board DP486 for Hicom 300/300E, is the central control processor of the SWU and the server. The board is fully pin- and SW-compatible with its forerunners DPML, DP386, and DP3DM.

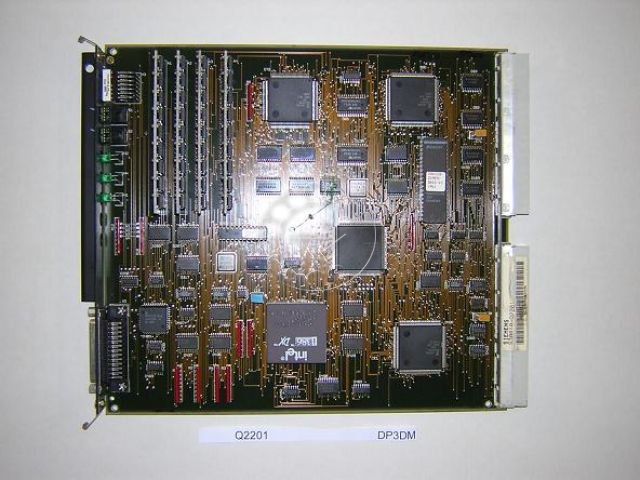

The Data Processor 386 Dynamic Memory board DP3DM (16 MB) is the central control processor of the SWU and the server.

The WAML-module board S30810-Q2205-X (WAN Access Module LAN) for the Hicom 300E enables the connection between the IP-router the Atlantic-LAN (ALAN), an external LAN (ELAN) and an ISDN-line.

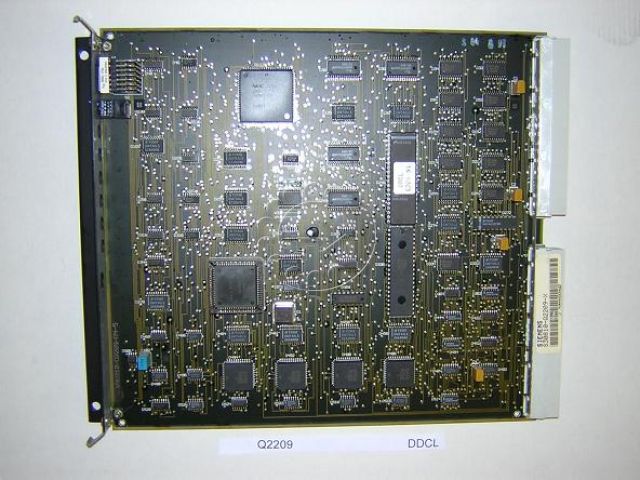

The DDCL (Double Data Communication Link) for Hicom 300/300E, provides the signaling interface between the LTUs and the DP in the SWU.

The SLAS4-module board S30122-Q921-D301 is a subscriber-module board with four analogue interfaces for the connection of system-neutral terminals.

Trunk Module Outgoing Multipurpose

HiPath 4000 IISDN SDN S0 trunk lines-/ user boardforthe STMD2-function without power supply

HiPath 4000 Digital S0 Module STMD3 with Local Power Supply

The MTS64-module board (Memory Time Switch) realizes the space-time-crossbar-switch for the Hicom 300.

The Memory Time Switch and Clock, MTSCG-board is a central board. the board units the functionality of a MTS64- or a MTS128-coupling field (Memory Time Switch) and a NCG (Network Clock Generator).

The Data Processor 386 Mono DM3L-X for the Hicom 300/300E, is a subclass of the DM3L-X, and enables the functions of the DM80-data-processor for the 80CM.

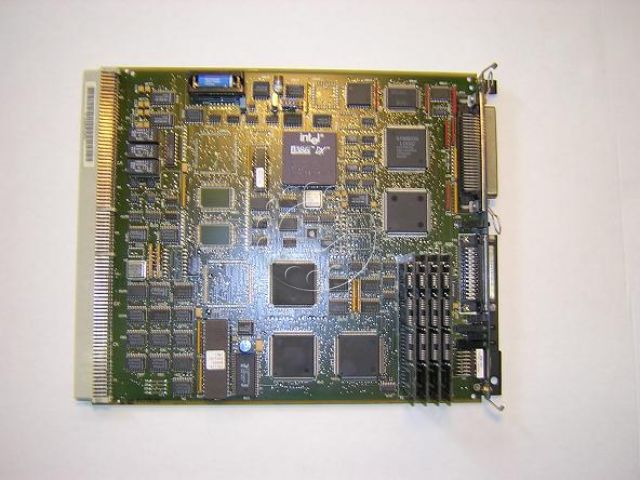

The DM3L-module board S30807-Q2230-X100 (Data Processor 386 Mono with LAN) is a variation of theS30807-Q2230-X module board for the Hicom 300/300E.

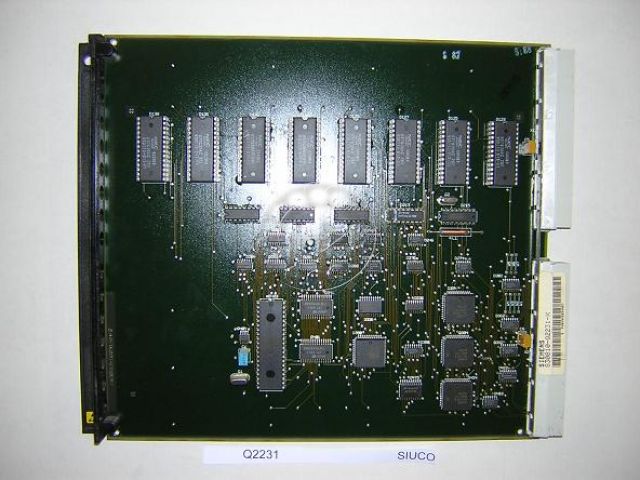

The SIUCO (Signaling Unit with Conference Unit) is used in the CCDX (380.3) and GCDX (390.3) shelves. The SIUCO combines the functions of the SIU and CONF boards.

The SIUCO board unites the functions of the SIU and CONF boards.

The SIUCX (Signaling Unit with Conference Unit)board replaces the SIUCO board in the central system shelves of EC (compact) systems (see also SIUX description).

The Signalilng Unit (SIUX) board is a replacement for the SIU board in the central and peripheral system shelves.

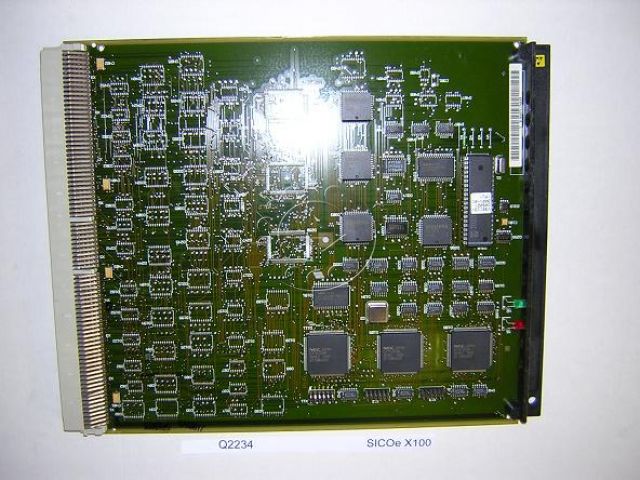

The SICOE-module board S30810-Q2234-X (Signaling Unit with conference and extension) supplies the 600 ECX system with audio-tones, announcements, matrix-switch-extensions, and Music on Hold.

The SICOE-module board S30810-Q2234-X (Signaling Unit with Conference and Extension)  supplies the 600 ECX system with audio-tones, announcements, matrix-switch extensions and Music on Hold.

The VCM-module board S30810-Q2235-X (Voice Compression) for the Hicom 300E, is a device which compresses and decompresses voice-channels.

The VCM-module board S30810-Q2235-X100 (Voice Compression) for the Hicom 300E, offers seven voice-channels of 64 kbit/s to 16 kbit/s either compressed or decompressed.

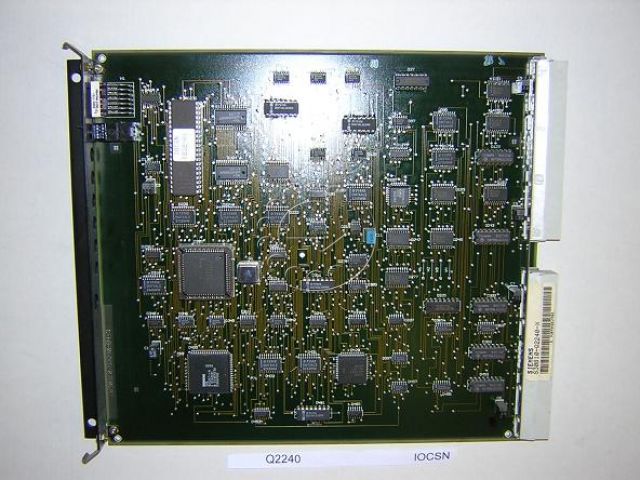

The Input Output Controller Switching Network (IOCSN) belongs to the central boards and together with a NCG and up to 7 MTS64 a breakdown unit.

Subscriber Line Module Analog Board with 24 analog extensions

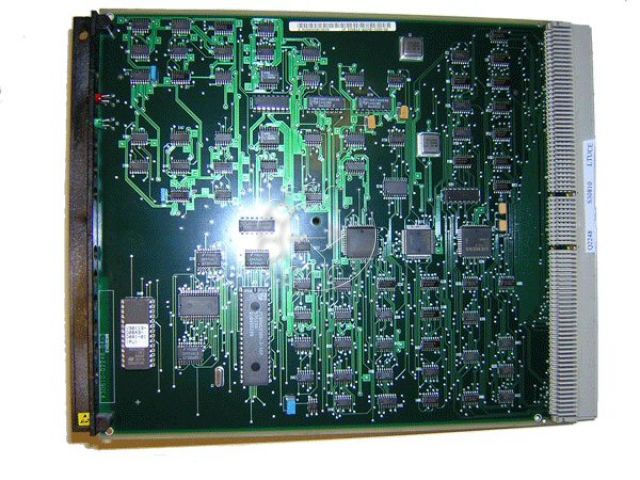

The Line Trunk Unit Control, Extended (LTUCE) board is the interface between the central and peripheral units of the telephone system.

The Data Processor 486 with LAN Node (DP4L) is based on the DP486 board. The board is compatible with the DM3L.

The DP4L-module board S30810-Q2250-X300 (Data Processor 486 with LAN Node) based on the processor DP486. The module board is compatible to the DM3L. The following functions have been changed:

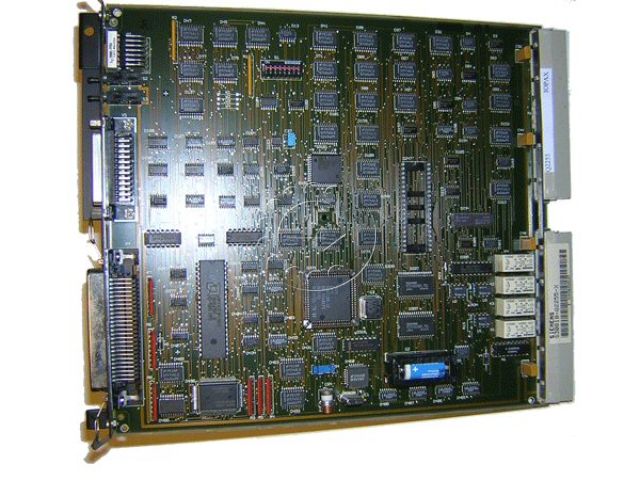

The IOPAX-module board S30810-Q2255-X (Input-Output Processor SCSI and Alarm-Control) enables the control of the peripheral storage unit (CT,HD) within the server.

The call generator S30810-Q2258-X generates AC voltages of 65 V or 85 V with frequency of 25 Hz or 50 Hz for the call of the analog subscriber or to the AC selection in cross traffic.

The DM4L-module board S30810-Q2260-X (Data Processor 486 Mono with LAN) offers the functions of a DM3L-module board, while providing the systems Hicom 330E and Hicom 350E with a higher performance features

The DM4L-module board S30810-Q2260-X (Data Processor 486 Mono with LAN) offers the functions of a DM3L-module board, while providing the systems Hicom 330E and Hicom 350E with a higher performance features.

The DSCX-module board S30810-Q2261-X (Data Processor and Serial Channel Extended) is the central-control-module board starting at Hicom 300H V1.0, which is deployed with the Hicom 330E.

The DSCX board(Data Processor Board and Extended Serial Channel) is the central processor module of the HiPath 4300.

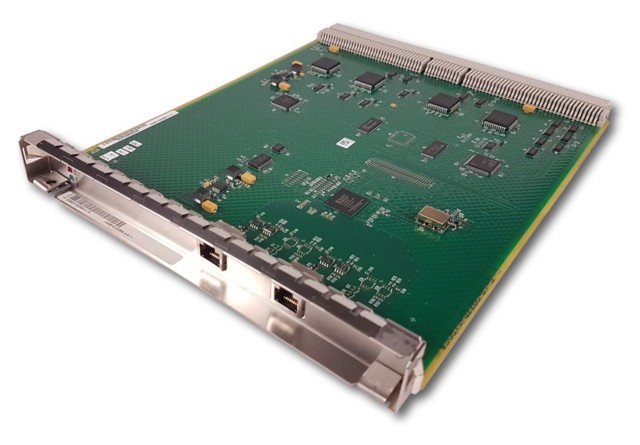

Line Trunk Unit Control Advanced board for HiPath 4000 and Openscape Business 4000

Line Trunk Unit Control Advanced board for HiPath 4000 and Openscape Business 4000

The processor-module-board DPC5 is the central control unit for the Hicom 300E.

The Hicom internal application server DMP5L with the SW platform for clien/server applications can be used as of Hivom V2.0. The DMP5L serves as internal server platform either for the applications ACD-G or SS7.

Analog trunk line for Hicom 300

Trunk Module EM World 2 TMEW2 4 channels

Subscriber Trunk Module IP HiPath 4000

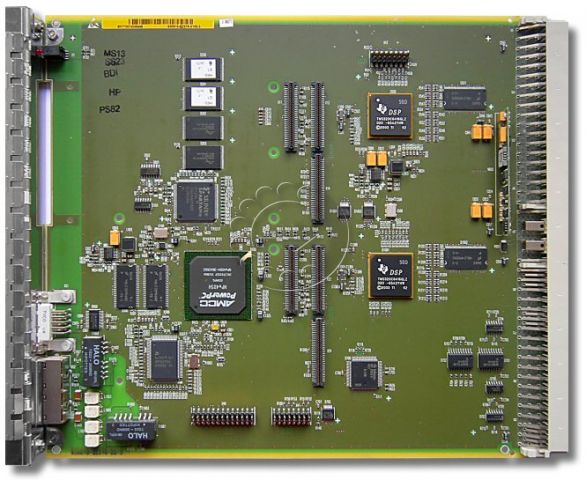

The STMI2 board Subscriber Trunk Module IP HiPath 3570 V2.0 forms the interface for HiPath 4000 in a IPDA-system IP Distributed Architecture.

Analog Trunk Module TMANI with 12/16 kHz metering, CLIP and line reversal detection

Analog Trunk Module TMANI with 12/16 kHz metering, CLIP and line reversal detection

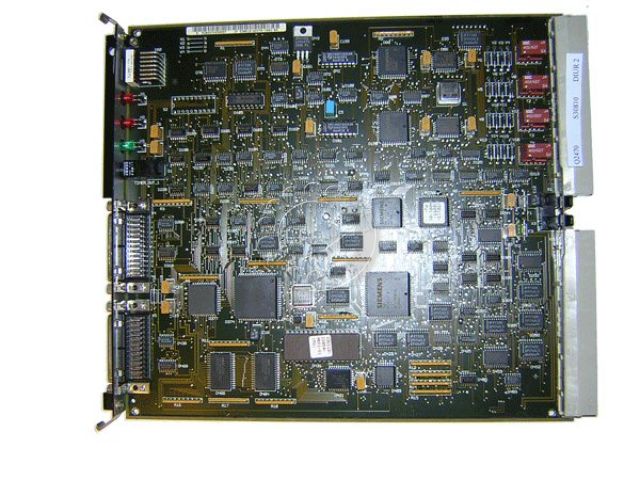

The Digital Interface Unit for RMS2 (DIUR2) is the interface between the basic system of the Hicom system and the spatially distinct system component RMS2.

Digital Interface Unit for RMS2

The SLMT board is an extension board for Hicom Trading. The board is used with the Hicom 300/300E system.

The TRIM (System Module Tape Interface) board is a peripheral board for the Hicom 300/300E.

Die MUXU-Baugruppe ist eine Erweiterungsbaugruppe zur Anschaltung von Trading 300-, Dipatcher 300-,oder Executive 300-Arbeitsplätze. Eingesetzt wird die Baugruppe in Simens Hicom 300/300E.

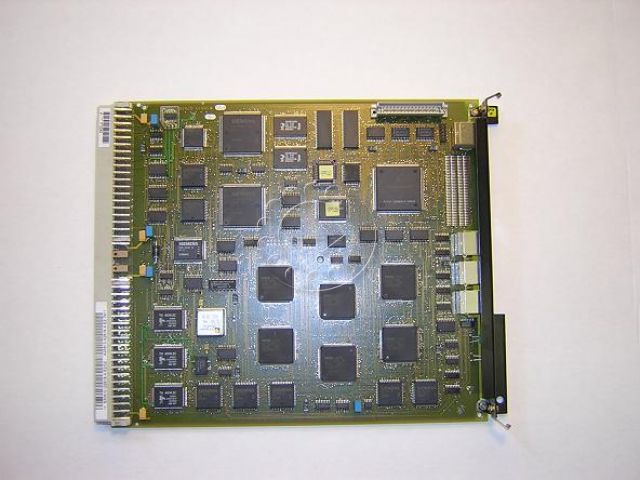

Die SLMY-Baugruppe ist eine Erweiterungsbaugruppe, die den Anschluss von max. 120 Leitungen und max. 30 Trading-Arbeitsplätzen ermöglicht. Eingesetzt wird die Baugruppe in Simens Hicom 300/300E.

The VCD board is a peripheral board for the Hicom 300E.

The SLCSM (Subscriber Line CMI Synchronisation Module) board is a GPS board. It is used for the synchronization of networked HiPath Cordless systems.

The TMACH-module board S30810-Q9556-X100 offers an analogue interface between the Hicom 300 system and the public network in Switzerland.
