PBX Expansion Boards » Unify / Siemens » HiPath 3x50 / HiPath 500

The Music-on-Hold-module board musiphone MPPI enables the integration of music while subscribers are on-hold.

The Hicom Office PhoneMail Entry B-module-board S30122-Q7078-X for the Hicom150E and Hipath 3000 systems.

The Voicemail-module-board for voice storage Voice Mail Module, music on hold and automatic centralized storage is intended for the HiPath 3350 and HiPath 3550.

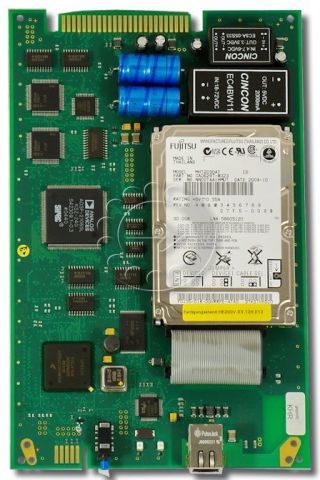

Voicemail board 8-channel including 30 GB harddrive for HiPath 3350

Integrated Voicemail-function for HiPath Xpressions Compact starting with V2.5

Integrated Voicemail-function for HiPath Xpressions Compact starting with V2.5

The UAM-9610N-module board S30122-X7217-B is an optional module board for the activation of announcement and music on hold functions for the communication systems HiPath 3350 and HiPath 3550, which can be connected to optical access lines and a/b-interfaces (for announcement functions).

The UAM-module board S30122-X7217-X is an optional module board for the activation of announcement and music on hold functions for the communication systems HiPath 3350 and HiPath 3550, which can be connected to optical access lines and a/b-interfaces (for announcement functions).

Unify PDM1 PMC DSP Module

The CMS-module board S30807-Q6928-X is a clock-module for the telephone system HiPath 3000.

The LIM-module S30807-Q6930-X offers an ethernet-LAN-connection via an 8-pole RJ45-socket.

The CMA-module board S30807-Q6931-X is a clock-module for HiPath 3000 pbx series

The optional module board S30807-Q6932-X is a sub-module for the central-circuit-board in the HiPath 3000 for an analogue tele-service (up to 14,4 kbits/s) without the need for an external modem.

The optional module board is a sub-module for the HiPath 3000 central control-module board, which enables analogue teleservice (up to 33,6 kbits/s) without an external modem.

The EVM-module S30807-Q6945-X is for the Hipath 3000 is available starting at sofware version V5.0 and activates an integrated voicemail system.

Cordless Interface,16 UP0/E-Ports

The SLMO24-module board S30807-Q2901-X is a subscriber-module-board with 24 analogue interfaces for the connection of system-neutral terminals.

The SLMO8-module board S30810-Q2901-X100 is a subscriber-module-board with 8 analogue interfaces for the connection of system-neutral terminals.

The TS2-module board S30810-Q2913-X100 with an S2M-interface which offers 30 voice channels for trunk-connection via NT or for the networking of extension-systems.

The TS2-module board S30810-Q2913-X300 with a S2M-interface offers 30 stellt 30 voice-channels for trunk-connections via NT or for the networking of extension -systems.

The TS2-module board S30810-Q2913-X300 with a S2M-interface offers 30 stellt 30 voice-channels for trunk-connections via NT or for the networking of extension -systems.

The SLC-module board S30810-Q2922-X with 16 U_P0/E-ports is a cordless-office-module and enables the connection of up to 16 Siemens base stations.

The 16SLA-module-board S30810-Q2923-X is a subscriber-module with 16 analogue slots for the connection of system-neutral terminals.

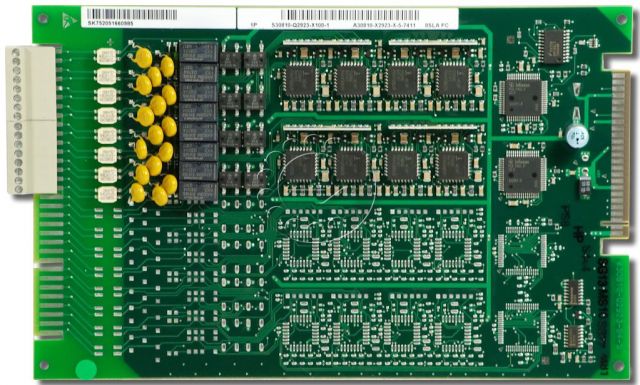

The 8SLA-module-board S30810-Q2923-X100 is a subscriber-module with 8 analogue slots for the connection of system-neutral terminals.

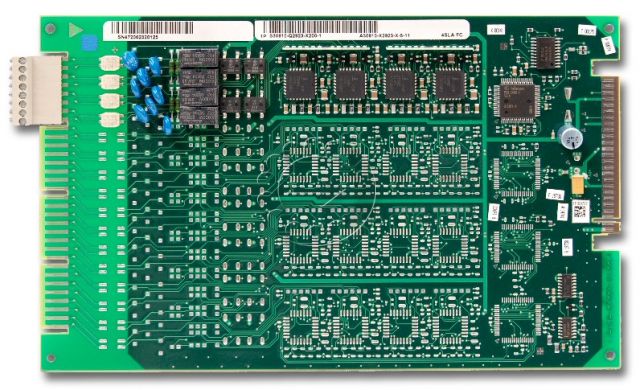

The 4SLA FC-module-board S30810-Q2923-X200 is a subscriber-module with 4 analogue slots for the connection of system-neutral terminals.

The 8SLA-module-board S30810-Q2925-X is a subscriber-module with 8 analogue slots for the connection of system-neutral terminals.

The 4SLA-module-board S30810-Q2925-X100 is a subscriber-module with 4 analogue slots for the connection of system-neutral terminals.

24 analogue interfaces for Hipath 3550 and HiPath 3750

16 analogue interfaces for HiPath 3550 and HiPath 3750

The HXGS-module board S30810-Q2931-X is the voice- / data-module board for the Hicom 150 H for the connection to a local DP-network.

The HXGS-module board S30810-Q2931-X100 is a Data only module board for the Hipath 3000 for the direct connection to a local DV-Network.

The CBCC board is the central control board for the Hipath 3550 / 3350 telephone system, equiped with 8 digital Upo interfaces and 4 a/b analog interfaces.

Central control-module-board for telephone system HiPath 3x50

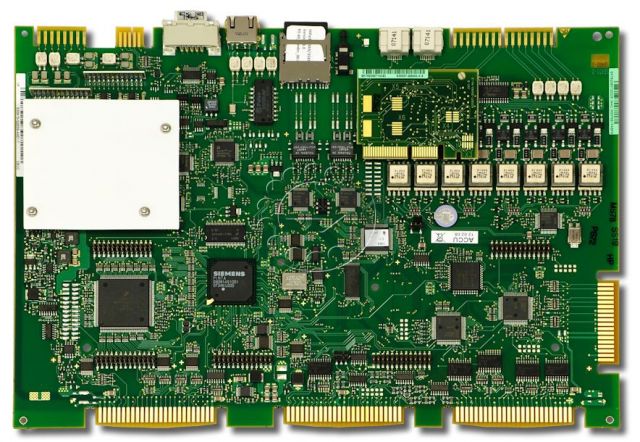

The CBCC-module board S30810-Q2935-A401 is the central control-module-board for the telephone systems HiPath 3350 and HiPath 3550.

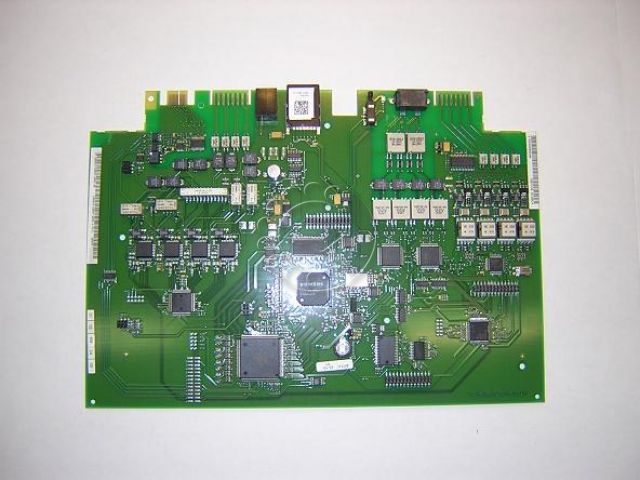

The SBSCO-module board S30810-Q2937-X is the central control-module-board of the HiPath 540.

Voice- / data-module-board for the HiPath 3000

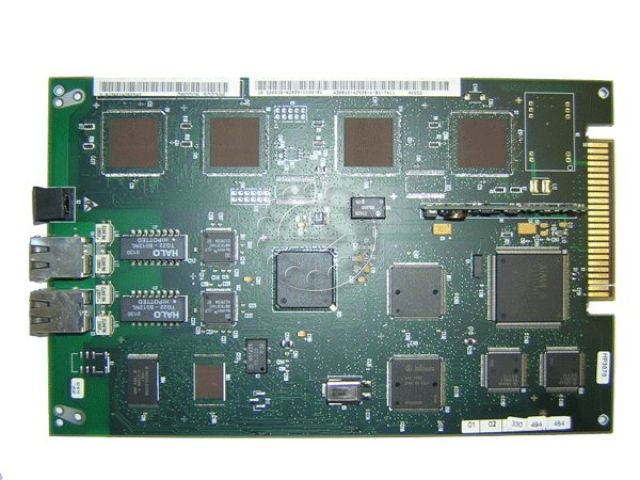

The HXGS2-module board S30810-Q2939-X100 is the data-only module board for HiPath 3000. The board offers a total of 8 B-channels for the connection of the Hipath 3000 to a LAN environment.

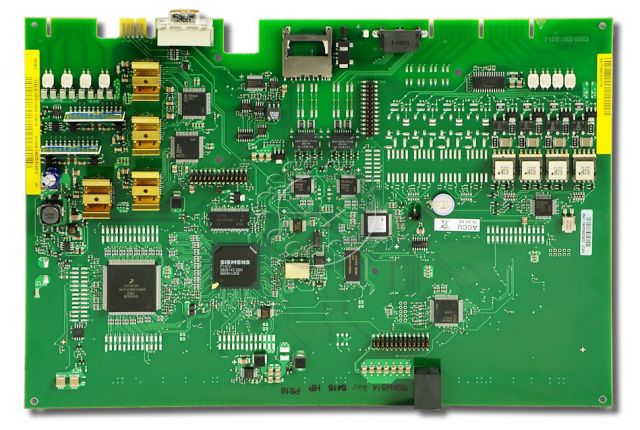

Central control-unit for HiPath 540

Central control-unit for HiPath 540

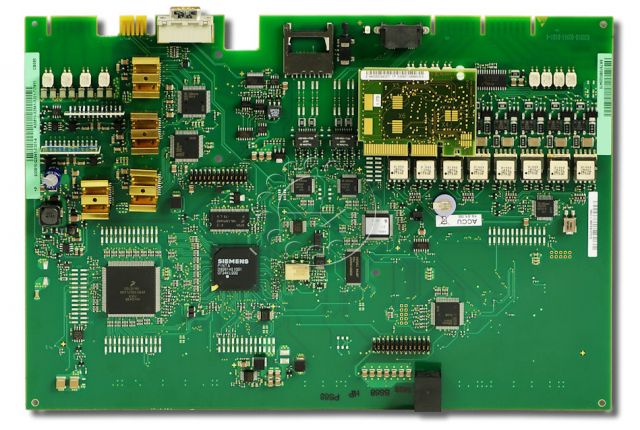

Central control-unit for HiPath 580

VoIP-Gateway for the HG1500 function at HiPath 3550 and HiPath3350

The STLSX4-module board S30810-Q2944-X with two S 0-interfaces is the compatible next-generation module board for the STLS4 S30817-Q924-A313.

The STLSX2-module board S30810-Q2944-X100 with two S 0-slots is compatible to the next-generation STLS2-module board S30817-Q9244-B313.

AnalogTrunk Line Board(2 HKZ)

The SLAD4-module-board S30810-Q2956-X100 is a subscriber-module-board with 4 analogue slots with CLIP-function for the connection of system-neutral terminals.

The SLAD8-module-board S30810-Q2956-X200 is a subscriber-module with 8 analogue slots with CLIP-function for the connection of system-neutral terminals.

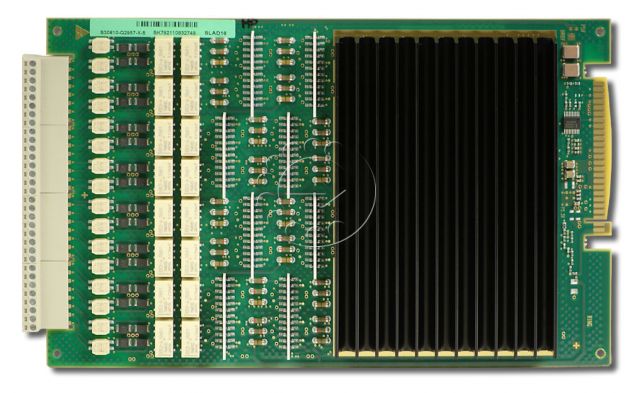

The SLAD16-module board S30810-Q2957-X is a subscriber-module-board with 16 analogue interfaces with CLIP-function for the connection of system-neutral terminals

The SLAD16-module board S30810-Q2957-X is a subscriber-module-board with 16 analogue interfaces with CLIP-function for the connection of system-neutral terminals

Music-on-Hold for HiPath 3000

The EXM-module board S30817-Q902-B401 enables the activation of external music-sources to the telephone system Hipath 3000.

The SLU8-module board S30817-Q922-A301 is a subscriber-module-board with 8 digital U P0-interfaces for the telephone system HiPath 3000.

The SLU8-module board S30817-Q922-A301 is a subscriber-module-board with 8 digital U P0-interfaces for the telephone system HiPath 3000.

The TLA4-module board S30817-Q923-A312 is a signaling-module-board with tfour analogue trunk-lines used for the impulse dialing procedures (IWV and MFV-process) in the Hipath 3000.

Die TLA4-Baugruppe S30817-Q923-A313 is a signaling-module-board with two analogue trunk-lines used for the impulse dialing procedures (IWV- and MFV-process).

The TLA2-module board S30817-Q923-B312 is a signaling-module-board with tfour analogue trunk-lines used for the impulse dialing procedures (IWV and MFV-process) in the telephone systems Hicom 150E / H and Hipath 3000.

The TLA2-module board S30817-Q923-B313 is a signaling-module-board with two analogue trunk-lines used for the impulse dialing procedures (IWV and MFV-process) in the telephone systems Hicom 150E / H and Hipath 3000.

The STLS4-module board S30817-Q924-A313 is a module board with four S 0-interfaces, which can be operated as external trunk-lines in TE-Mode or alternatively as internal S 0-interfaces (Bus PMP) in NT-Mode.

The STLS2-module board S30817-Q924-B313 is a module board withtwo S0-interfaces, which can be operated as external trunk-lines in TE-Mode or alternatively as internal S 0-interfaces (Bus PMP) in NT-Mode.

The TLA8-module board S30817-Q926-A312 is a signaling-module-board with eight analogue trunk-lines used for the impulse dialing procedures (IWV and MFV-process) for the telephone system HiPath 3000.

The STRB module board S30817-Q932-A enables surveillance, alarm-signaling, control, operation and a door-opening-function within a telephone system.

The LAN Bridge module board S30817-Q955-X for the HiPath 3000 connects via a public ISDN-network the internal LAN with the external LAN.
