PBX Expansion Boards » Unify / Siemens » HiPath 3x00

The Music-on-Hold-module board musiphone MPPI enables the integration of music while subscribers are on-hold.

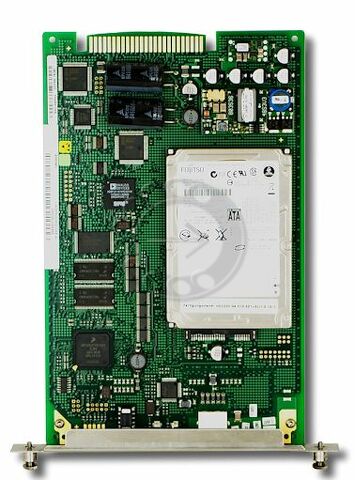

The Voicemail-module-board encompasses 8 channel / ports and a 30 GB harddrive in which up to 100 Auto Attendant Mailboxes as well as up to 100 Information-Mailboxes can be saved.

The Phonemailboard has 8 channels ports and one 30 GB Harddrive forthe saving of up to 100 auto attendant mailboxes and up to 100informations mailboxes.

The Phonemailboard has 8 channels ports and one 30 GB Harddrive forthe saving of up to 100 auto attendant mailboxes and up to 100informations mailboxes.

The switch-module board which enables the external music input to the telephone systems HiPath 3300 and HiPath 3500.

Integrated Voicemail-function for HiPath Xpressions Compact starting with V2.5

Announcement and music on hold functions for HiPath 3x00

Unify PDM1 PMC DSP Module

The CMS-module board S30807-Q6928-X is a clock-module for the telephone system HiPath 3000.

The LIM-module S30807-Q6930-X offers an ethernet-LAN-connection via an 8-pole RJ45-socket.

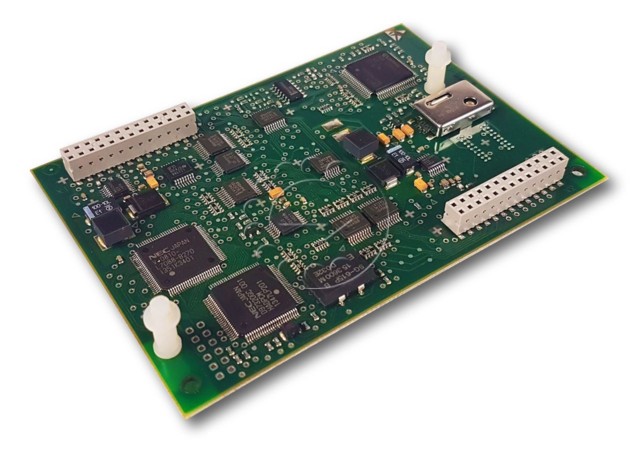

The CMA-module board S30807-Q6931-X is a clock-module for HiPath 3000 pbx series

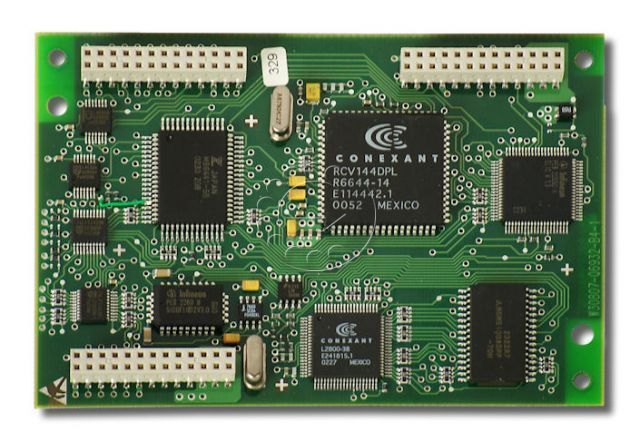

The optional module board S30807-Q6932-X is a sub-module for the central-circuit-board in the HiPath 3000 for an analogue tele-service (up to 14,4 kbits/s) without the need for an external modem.

The optional module board is a sub-module for the HiPath 3000 central control-module board, which enables analogue teleservice (up to 33,6 kbits/s) without an external modem.

The EVM-module S30807-Q6945-X is for the Hipath 3000 is available starting at sofware version V5.0 and activates an integrated voicemail system.

The TS2-module board S30810-K2913-X100 with an S2M-interface offers 30 voice channels for the connection of trunk-lines via NT or enables the networking of extension-systems.

The TS2-module board S30810-K2913-X300 has a S2M-interface which offers 30 voice channels for trunk-connections via NT or the networking of extension-systems.

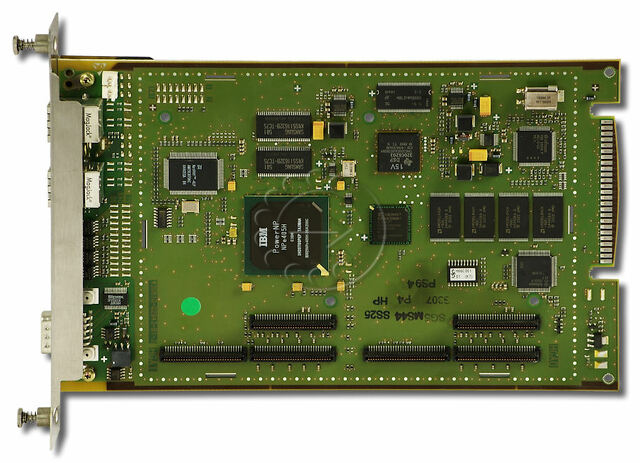

The HXGR3-module board S30810-K2943-Z is the VoIP-Gateway-module board (VoIP - Voice or IP), which enables the function of the HG1500 in the HiPath 3500 and HiPath 3300.

The following module board provides four S0-base-connections for the operation within an HPath 3500 and HiPath 3300 telephone system.

The TS2-module board S30810-Q2913-X300 with a S2M-interface offers 30 stellt 30 voice-channels for trunk-connections via NT or for the networking of extension -systems.

THe 8SLA-module-board S30810-Q2925-Z is a subscriber-module with 8 analogue slots for the connection of system-neutral terminals.

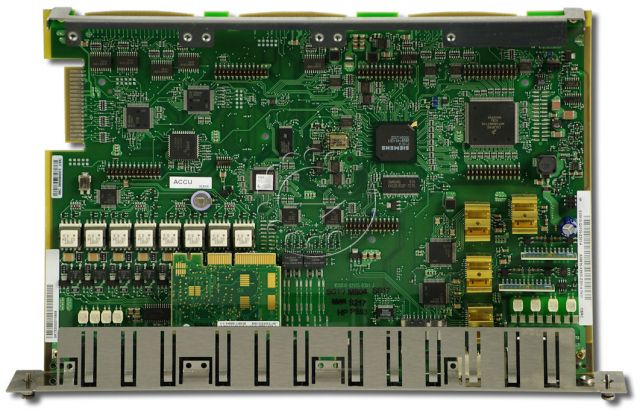

The CBRC board is the central control board for the Hipath 3500 / 3300 telephone systems and is equiped with 8x digital Upo interfaces, 2x So ISDN and 4x a/b analogue interfaces. V4.0

Die CBRC Baugruppe ist die Zentrale Steuerungsbaugruppe für die Hipath 3500 / 3300 Telefonanlage, ausgestattet mit 8x dig. Upo TS, 2x So ISDN und 4x a/b analoge TS ab der Software V5.0 bis V9.0.

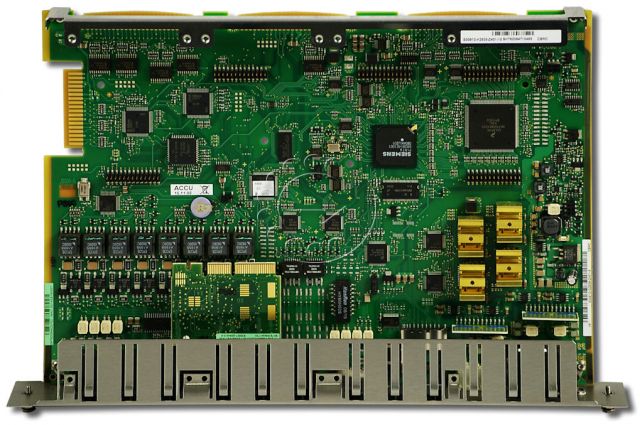

The CBRC-module board S30810-K2935-Z401 is the central control-module-board for the telephone systems HiPath 3300 and HiPath 3500.

Voice and Data für HiPath 3000

VoIP-Gateway for the HG1500 function at HiPath 3550 and HiPath3350

The STLSX4-module board S30810-Q2944-X with two S 0-interfaces is the compatible next-generation module board for the STLS4 S30817-Q924-A313.

The SLAD8-module-board S30810-Q2956-X300 is a subscriber-module with 8 analogue slots with CLIP-function for the connection of system-neutral terminals.

The SLAD16-module board S30810-Q2957-X is a subscriber-module-board with 16 analogue interfaces with CLIP-function for the connection of system-neutral terminals

The module-board STLS4R is utilized within 19"telephone-systems such as theHiPath 3300 and HiPath 3500.

The module-board STLS4R is utilized within 19"telephone-systems such as theHiPath 3300 and HiPath 3500.

Music-on-Hold for HiPath 3000

The SLU8R-module board S30817-Q922-Z301 is a subscriber-module-board with 8 digital U P0-interfaces for the telephone system HiPath 3000.

The TLA4R-module board S30817-K923-Z313 is a signaling-module-board with four analogue trunk-lines used for the impulse dialing procedures (IWV and MFV-process) in the Hipath 3500 and Hipath 3300.

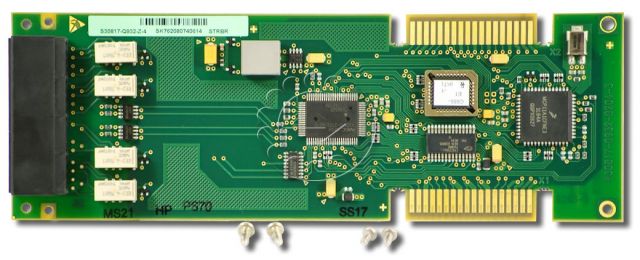

The STRBR module-board S30817-Q932-Z enables surveillance, alarm-signaling, control, operation and a door-opening-function for the telephone system HiPath 3000.
